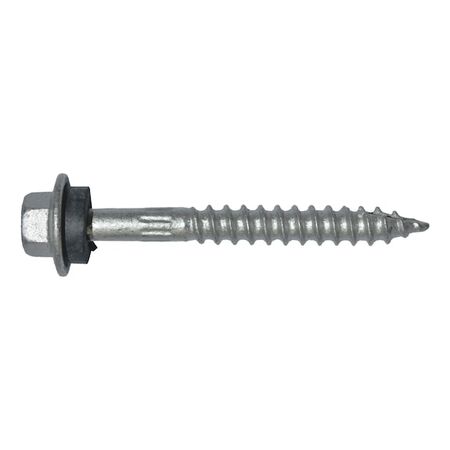

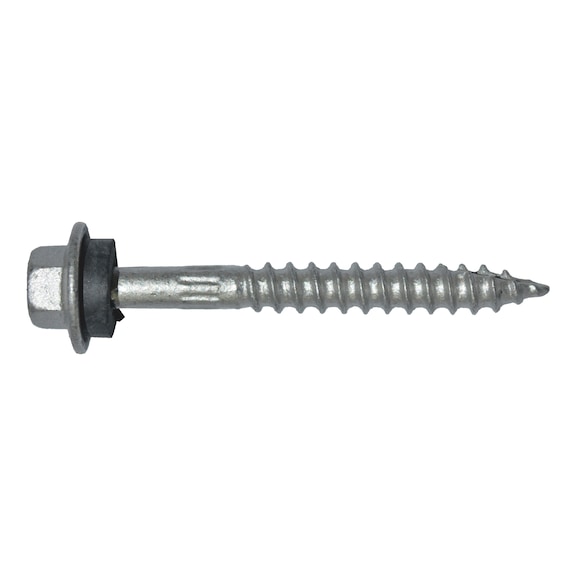

Hex Head Type 17 Wood Screw | Flanged with Rubber Seal | Self-Drilling Tip | 6.3mm Diameter | @Each by Wurth
Hex head Type 17 wood screw with flange and rubber seal is designed for reliable fastening in timber and thin steel applications. Featuring a sharp self-drilling tip, it eliminates the need for pre-drilling, making it ideal for quick installations. The rubber washer ensures a weather-tight seal, perfect for external applications in coastal areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Type 17 Wood Screw | Flanged with Rubber Seal | Self-Drilling Tip | 6.3mm Diameter | @Each by Wurth
Brand: Wurth
SKU: 5047000033
Alternatively Known As: Hex flange wood screw, Type 17 self-drilling screw, Rubber sealed hex screw, Timber fixing screw
Technical Specifications
- Material: Steel
- Surface: Class 4 coating
- Nominal diameter: 6.3 mm
- Length: 100 mm
- Thread length: 58.2 mm
- Head diameter: 14.5 mm
- Head type: Hexagon head with flange
- Type 17 sharp self-drilling tip
- Rubber washer under head for sealing
- Dimensions (H x L x W): 6.3mm x 100mm x 14.5mm
- Weight: 0.05 kg
Key Features
- Flanged hex head screw with rubber washer under head for weather sealing
- Type 17 sharp self-drilling tip requires no pre-drilling even in hard woods and thin steel sheeting
- Cut-out aids in waste removal similar to a drill bit
- Prevents wood fibres separating for close to edge fastening
- Ribbed shank improves corrosion resistance by protecting the fastener shank from severe scratching
- Class 4 coating suitable for external applications
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and sealing, especially for external and structural applications.
Applications
- Fixing to timber sub-structures
- External applications in coastal areas with moderate to high salt levels
- Fastening thin steel sheeting
- Close to edge fastening in wood
Standards & Compliance
- Complies with AS/NZS 4785 - Wood Screws (implied by application and material standards)
Environmental Benefits
- Durable corrosion-resistant coating extends product life reducing replacement frequency
- Self-drilling tip eliminates need for pre-drilling, reducing installation time and energy use
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Hex Head Type 17 Wood Screw with flange and rubber seal 6.3x100mm is available for immediate purchase, ideal for timber and metal fastening in construction and outdoor projects.
