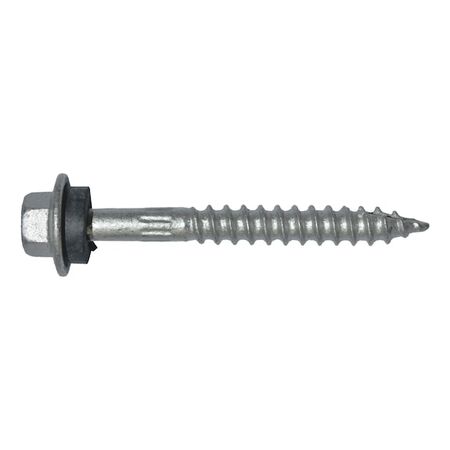

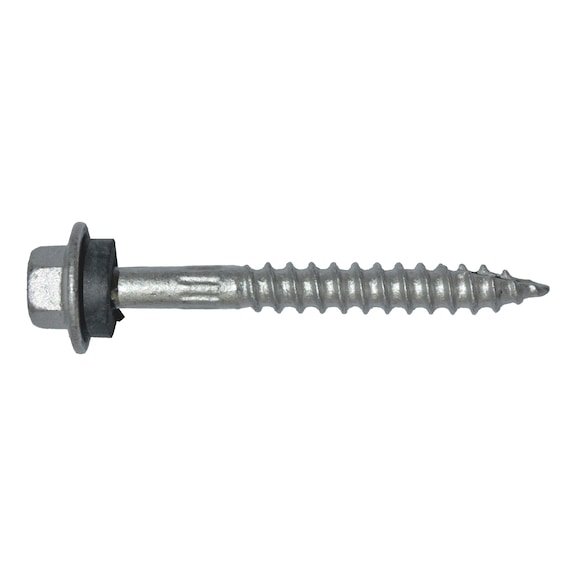

Hex Head Type 17 Wood Screw | Flanged with Rubber Seal | Self-Drilling Tip | Class 4 Coating | by Wurth
Hex head Type 17 wood screw with flange and rubber seal is designed for reliable fastening in timber and thin steel applications. Featuring a sharp self-drilling tip, it eliminates the need for pre-drilling, making it ideal for quick installations. The Class 4 coating ensures durability in external environments, perfect for coastal areas with high salt levels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hex Head Type 17 Wood Screw | Flanged with Rubber Seal | Self-Drilling Tip | Class 4 Coating | by Wurth
Brand: Wurth
SKU: 5047000030
Alternatively Known As: Hex flange wood screw, Type 17 self-drilling screw, Weather sealed wood screw, Timber fixing screw
Technical Specifications
- Material: Steel
- Surface: Class 4 coating
- Nominal diameter: 6.3 mm
- Length: 65 mm
- Thread length: 43 mm
- Head diameter: 14.3 mm
- Head type: Hexagon head with flange
- Type 17 sharp self-drilling tip
- Dimensions (H x L x W): 6.3mm x 65mm x 14.3mm
- Weight: 0.05 kg
Key Features
- Flanged hex head screw with rubber washer under head for weather sealing
- Type 17 sharp self-drilling tip requires no pre-drilling even in hard woods and thin steel sheeting
- Cut-out aids in waste removal similar to a drill bit
- Prevents wood fibres separating for close to edge fastening
- Ribbed shank improves corrosion resistance by protecting the fastener shank from severe scratching
- Class 4 coating suitable for external applications
Professional Installation Requirements
- Installation by a qualified tradesperson or professional recommended to ensure correct fastening and sealing.
Applications
- Fixing timber sub-structures
- External applications in coastal areas with moderate to high salt levels
- Fastening thin steel sheeting
- Close to edge fastening in wood
Standards & Compliance
- Complies with AS/NZS 4785 - Timber screws (implied for timber fixing screws)
Environmental Benefits
- Class 4 coating extends product life reducing replacement frequency and waste
- Self-drilling tip eliminates need for pre-drilling, saving time and energy
Warranty Information
Wurth standard warranty against manufacturing defects applies.
Available Now
The Wurth Hex Head Type 17 Wood Screw with flange and rubber seal 6.3x65mm is available for immediate purchase, ideal for timber and metal fastening applications.
