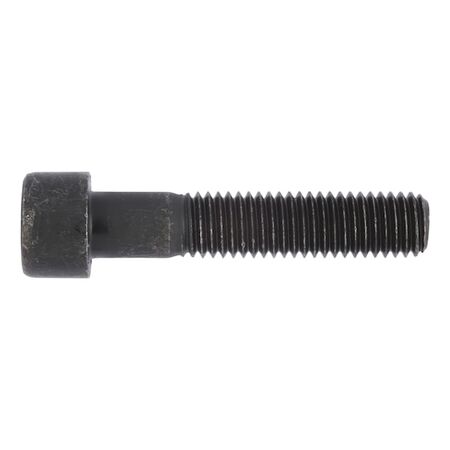

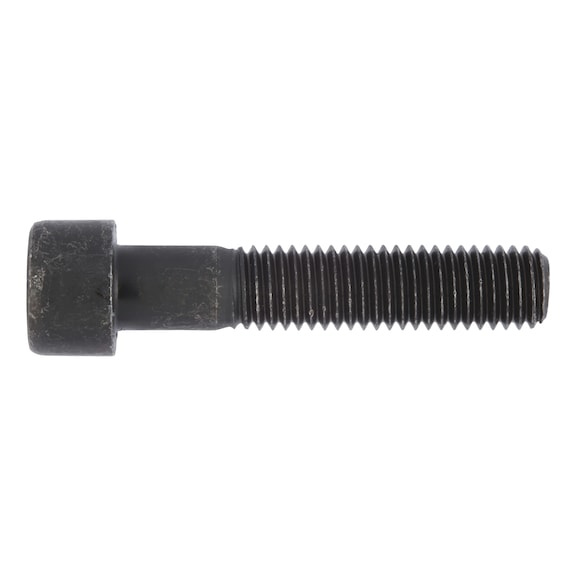

Hex Socket Head Bolt M5 | High Strength Steel | RoHS Compliant | by Wurth

BRAND: Wurth
SKU: 83530
$43.30 List price: $54.40
+ −
30 Days Return Delivery Options
The Hex Socket Head Bolt M5 is crafted from high-strength steel with a property class of 12.9, ensuring secure fastening for mechanical assemblies. Ideal for industrial machinery and automotive applications, this bolt features a hexagon socket drive for easy installation and is RoHS-compliant, making it a safe choice for environmentally conscious projects.

Product Name/Title: Hex Socket Head Bolt M5 | High Strength Steel | RoHS Compliant | by Wurth

Brand: Wurth

SKU: 83530

Alternatively Known As: Hex Socket Head Bolt M5, Metric Socket Cap Screw M5x30, High Strength Socket Head Bolt

Technical Specifications
  • Thread type x nominal diameter (d1): M5
  • Length (l1): 30 mm
  • Head diameter (dk): 8.5 mm
  • Head height (k1): 5 mm
  • Standards: ISO 4762
  • Material: Steel
  • Property class: 12.9
  • Surface: Plain
  • RoHS-compliant: Yes
  • Head type: Socket head
  • Drive type: Hexagon socket
  • Internal drive (s1): HS4
  • Thread type: Metric thread
  • Thread form: Standard metric thread
  • Product class: A
  • Dimensions (H x L x W): 5mm x 30mm x 8.5mm
  • Weight: 0.1 kg
Key Features
  • Made from high-strength steel with property class 12.9
  • Metric thread with standard metric thread form
  • Socket head with hexagon internal drive (HS4) for secure fastening
  • RoHS-compliant ensuring environmental safety
Professional Installation Requirements
  • Installation by qualified personnel recommended to ensure correct torque and fastening integrity.
Applications
  • Mechanical assemblies requiring high strength fastening
  • Industrial machinery and equipment
  • Automotive and engineering applications
Standards & Compliance
  • AS/NZS 4762 – Socket Head Cap Screws (aligned with ISO 4762)
Environmental Benefits
  • RoHS-compliant material reduces hazardous substances impact
Warranty Information

Warranty against manufacturing defects as per Wurth standard policy.

Available Now

Available for immediate purchase, ideal for industrial, automotive, and mechanical fastening applications.
