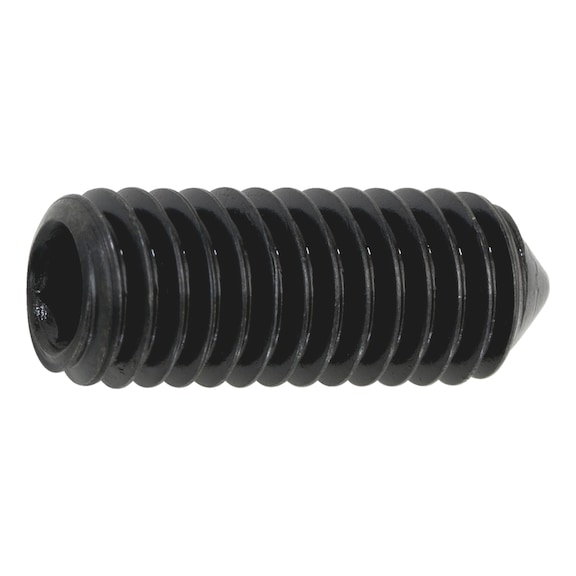

Hex Socket Set Screw M5 | 5mm Length | 1.25mm Tip Diameter | 120 Degree Tip Angle | by Wurth

BRAND: Wurth
SKU: 25655
$31.10 List price: $39.10
+ −
30 Days Return Delivery Options
The Hex Socket Set Screw M5 is designed for secure fastening in mechanical assemblies, featuring a 5mm length and a 1.25mm tip diameter. With a 120-degree tip angle and made from steel with a 45H hardness category, this screw is perfect for industrial machinery, automotive, and aerospace applications. RoHS-compliant, it ensures reduced hazardous substances, making it a reliable choice for your fastening needs.

Product Name/Title: Hex Socket Set Screw M5 | 5mm Length | 1.25mm Tip Diameter | 120 Degree Tip Angle | by Wurth

Brand: Wurth

SKU: 25655

Alternatively Known As: Hex Socket Set Screw M5, M5 Set Screw with Tip, Hexagon Socket Screw M5

Technical Specifications
  • Thread type x nominal diameter (d1): M5
  • Length (l1): 5 mm
  • Tip diameter (d2): 1.25 mm
  • Internal drive (s1): HS2.5 hexagon socket
  • Angle of the tip: 120 degrees
  • Material: Steel
  • Hardness category: 45H
  • Surface: Plain
  • Drive type: Hexagon socket
  • Shape of tip: Tip
  • RoHS-compliant: Yes
  • Standard: ISO 4027
  • Dimensions (H x L x W): 5mm x 5mm x 5mm
  • Weight: 0.1 kg
Key Features
  • Thread type: M5
  • Length: 5 mm
  • Tip diameter: 1.25 mm
  • Internal drive: HS2.5 hexagon socket
  • Tip angle: 120 degrees
  • Material: Steel with 45H hardness category
  • Plain surface finish
  • RoHS-compliant
Professional Installation Requirements
  • Installation by a qualified technician or engineer is recommended to ensure proper fastening and safety.
Applications
  • Mechanical assemblies requiring secure fastening
  • Industrial machinery and equipment
  • Automotive and aerospace components
  • General purpose fastening in metalworking
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • RoHS-compliant ensuring reduced hazardous substances.
Warranty Information

Standard manufacturer warranty applies.

Available Now

The Wurth M5 x 5mm Hexagon Socket Set Screw with Tip is available for immediate purchase, ideal for industrial and mechanical fastening applications.
