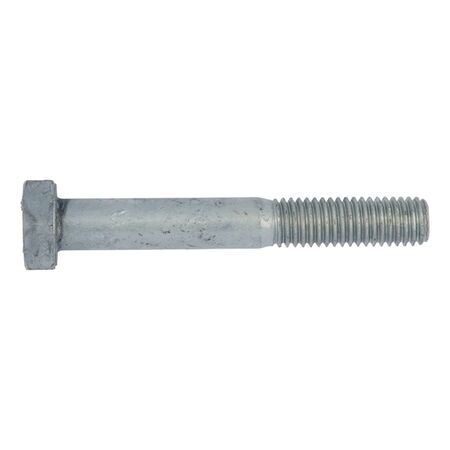

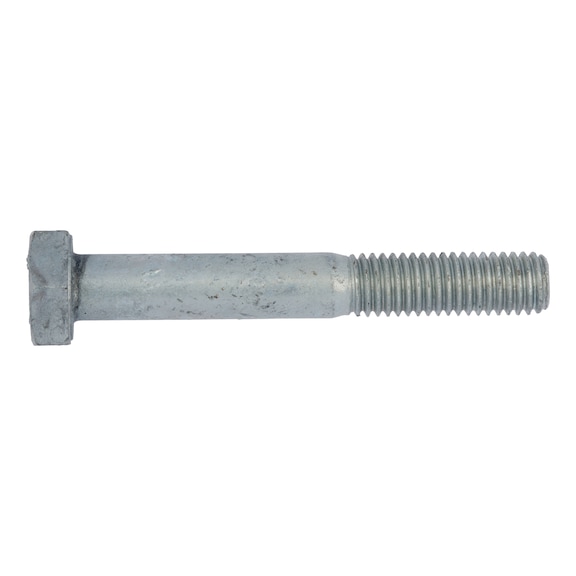

Hexagon Bolt DIN 931 | Hot Dip Galvanised | 8.8U Steel | WS17 Drive | @Pack of 10 | by Wurth
Hexagon Bolt DIN 931 with hot dip galvanised finish and 8.8U steel construction is perfect for construction and structural applications. Designed for strong bolted joints, this bolt features a WS17 drive and partial metric thread, ensuring secure fastening in machinery assembly and general engineering projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 931 | Hot Dip Galvanised | 8.8U Steel | WS17 Drive | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 59610100
Alternatively Known As: Hex bolt M10x100, Hot dip galvanized hex bolt, DIN 931 bolt, Steel hex bolt 8.8U
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 100 mm
- Head height (k1): 7 mm
- External drive (s1): WS17
- Standards: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (b): 26 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 100mm x 17mm
- Weight: 0.1 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied
- ISO-compatible after hot dip zinc-plating
- Hot dip galvanized surface for corrosion resistance
- Hexagon head with outer hexagon drive (WS17)
- Partial metric thread design
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper torque and secure fastening.
Applications
- Construction and structural applications requiring strong bolted joints
- Machinery assembly and maintenance
- General engineering and fabrication projects
Standards & Compliance
- Complies with AS/NZS 1170 for structural design actions relevant to construction applications
Environmental Benefits
- Hot dip galvanizing provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagon Bolt with Shank DIN 931 Steel 8.8U Hot Dip Galvanised M10x100 is available for immediate purchase, ideal for construction, engineering, and maintenance applications.
