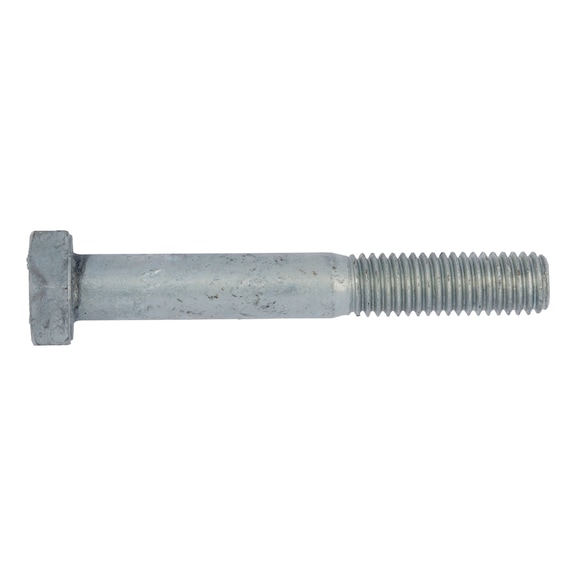

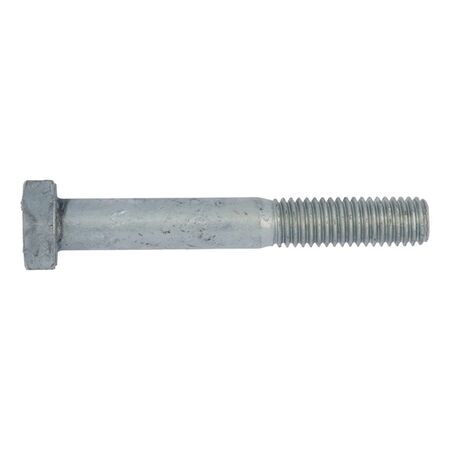

Hexagon Bolt DIN 931 | Hot Dip Galvanised | 8.8U Steel | WS17 Drive | @Pack of 10 | by Wurth
Hexagon Bolt DIN 931 with hot dip galvanised finish and 8.8U steel construction is perfect for construction, industrial, and automotive applications. Designed for secure fastening with a WS17 drive, this bolt ensures high strength and corrosion resistance, making it ideal for structural assemblies and machinery fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 931 | Hot Dip Galvanised | 8.8U Steel | WS17 Drive | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 59610140
Alternatively Known As: Hex bolt M10x140, Hot dip galvanized hex bolt, DIN 931 bolt, Steel hex bolt, Metric hex bolt

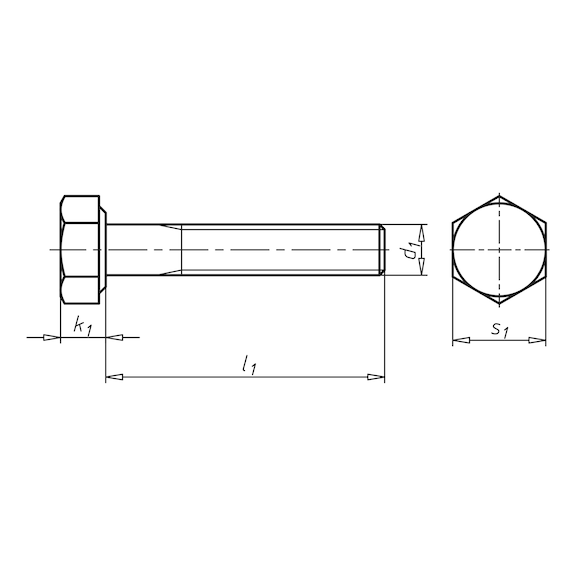

Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 140 mm
- Head height (k1): 7 mm
- External drive (s1): WS17
- Standards: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 32 mm
- Product class: B
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 140mm x 17mm
- Weight: 0.15 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
- ISO-compatible after hot dip zinc-plating.
- Hot dip galvanized surface for enhanced corrosion resistance.
- Hexagon head with outer hexagon drive (WS17) for secure fastening.
- Partial metric thread design with 32 mm thread length.
- Property class 8.8U steel for high strength.
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Construction: Structural assemblies and frameworks
- Industrial: Machinery and equipment fastening
- Automotive: Vehicle assembly and repair
- General: Any application requiring strong, corrosion-resistant hex bolts
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot dip galvanizing provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth Hexagon Bolt with Shank DIN 931 Steel 8.8U Hot Dip Galvanised M10x140 is available for immediate purchase. Ideal for construction, industrial, and automotive fastening applications.
