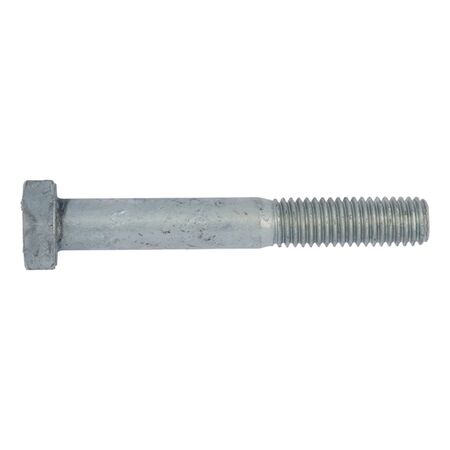

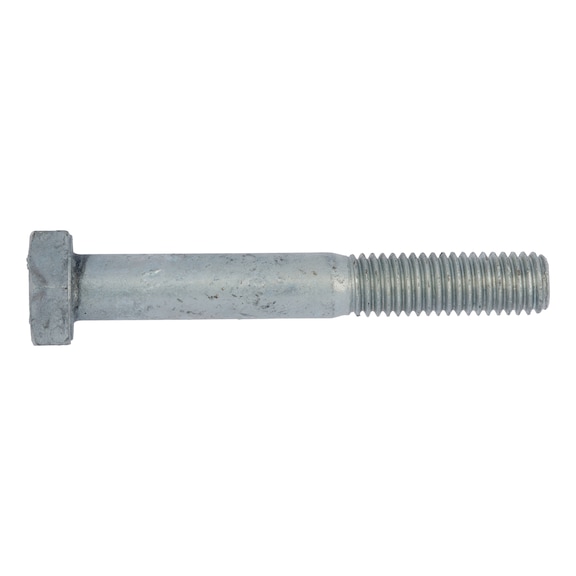

Hexagon Bolt DIN 931 | Hot Dip Galvanised | 8.8U Steel | WS17 Drive | @Pack of 10 | by Wurth
Hexagon Bolt DIN 931 with hot dip galvanised finish and 8.8U steel construction is perfect for construction and industrial applications. Designed for high strength and corrosion resistance, this bolt features a WS17 drive and is ideal for outdoor use, ensuring secure fastening in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 931 | Hot Dip Galvanised | 8.8U Steel | WS17 Drive | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5961080
Alternatively Known As: Hex bolt M10x80, Hot dip galvanized hex bolt, DIN 931 bolt, Steel hex bolt 8.8U, Metric hex bolt
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 80 mm
- Head height (k1): 7 mm
- External drive (s1): WS17
- Standards: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 26 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 80mm x 17mm
- Weight: 0.1 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
- ISO-compatible after hot dip zinc-plating.
- Hot dip galvanized surface for enhanced corrosion resistance.
- Hexagon head with outer hexagon drive (WS17).
- Partial metric thread design with 26 mm thread length.
- Property class 8.8U steel for high strength.
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and secure fastening.
Applications
- Construction and building fastening
- Mechanical assemblies requiring strong bolted joints
- Industrial machinery and equipment
- Outdoor and corrosive environments due to hot dip galvanising
Standards & Compliance
- Complies with AS/NZS 1252 for high strength bolts and fasteners
Environmental Benefits
- Hot dip galvanising provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagon Bolt with Shank DIN 931 Steel 8.8U Hot Dip Galvanised M10x80 is available for immediate purchase, ideal for construction, industrial, and outdoor applications.
