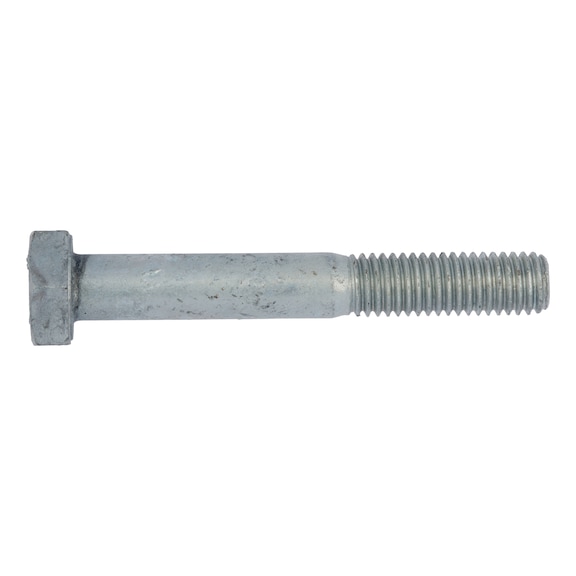

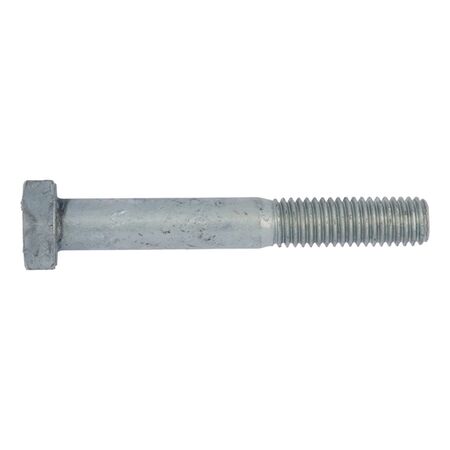

Hexagon Bolt DIN 931 | Hot Dip Galvanized | M10x90 | 8.8U Strength | @Pack of 10 | by Wurth
Hexagon Bolt DIN 931 with hot dip galvanized finish and 8.8U strength is perfect for construction and industrial applications. Designed for secure fastening, this M10x90 bolt features a hexagon head for easy tightening and is ideal for outdoor use, providing long-lasting corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 931 | Hot Dip Galvanized | M10x90 | 8.8U Strength | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5961090
Alternatively Known As: Hex bolt M10x90, Hot dip galvanized hex bolt, DIN 931 bolt, Steel hex bolt, Metric hex bolt
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 90 mm
- Head height (k1): 7 mm
- External drive (s1): WS17
- Standards: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 26 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 90mm x 17mm
- Weight: 0.1 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
- ISO-compatible after hot dip zinc-plating.
- Hot dip galvanized surface for enhanced corrosion resistance.
- Hexagon head with outer hexagon drive (WS17) for easy tightening.
- Partial metric thread design for secure fastening.
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper torque and secure fastening.
Applications
- Construction and building fastening
- Mechanical assemblies requiring strong, corrosion-resistant bolts
- Industrial machinery and equipment assembly
- Outdoor and structural applications exposed to weather
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot dip galvanizing provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
The Wurth Hexagon Bolt with Shank DIN 931 Steel 8.8U Hot Dip Galvanised M10x90 is available for immediate purchase, ideal for construction, industrial, and mechanical fastening applications.
