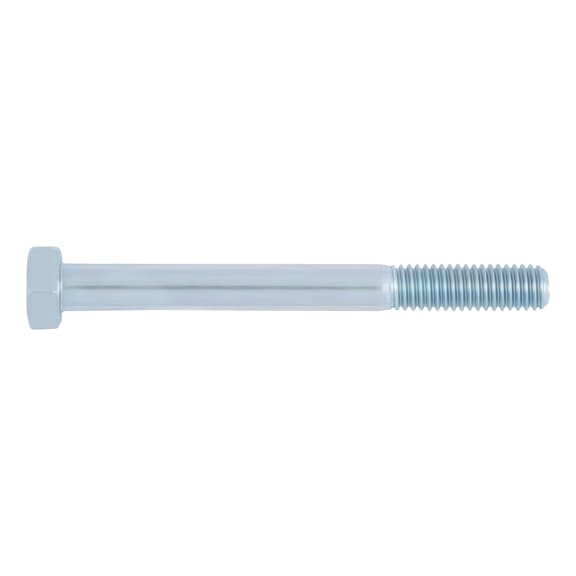

Hexagon Bolt DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Hexagon Bolt DIN 931 made from high-strength Steel 10.9, featuring a zinc-plated and blue passivated finish for enhanced corrosion resistance. Perfect for mechanical assemblies, automotive, and structural applications, this bolt ensures secure fastening with its partial metric thread design. Ideal for professionals seeking reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 10501065
Alternatively Known As: Hex bolt M10, Hex head bolt, Metric hex bolt, Zinc plated hex bolt, High tensile bolt
Technical Specifications
- Thread type x nominal diameter: M10
- Length: 65 mm
- Head height: 7 mm
- External drive size: WS17
- Standard: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc plated with blue passivation
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length: 26 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 65mm x 17mm
- Weight: 0.1 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Partial metric thread design for secure fastening
- Steel material with property class 10.9 for high tensile strength
- Zinc plated with blue passivation for corrosion resistance
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by qualified personnel using appropriate torque tools is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring high strength fastening
- Automotive and machinery construction
- Structural steel connections
- General industrial use
Standards & Compliance
- Complies with AS/NZS 1252 for high tensile bolts and screws
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon Bolt with Shank DIN 931 Steel 10.9 Zinc-Plated Blue Passivated M10 x 65mm 10 PCS is available for immediate purchase. Ideal for industrial, automotive, and construction applications.
