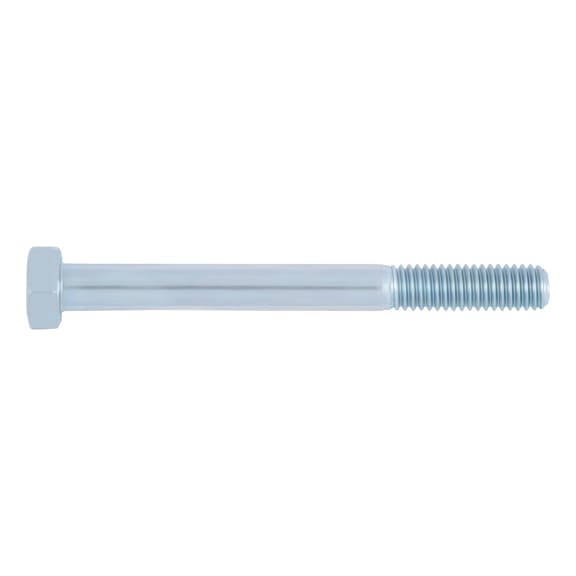

Hexagon Bolt DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Hexagon Bolt DIN 931 made from high-strength Steel 10.9, featuring a zinc-plated and blue passivated finish for enhanced corrosion resistance. Perfect for mechanical assemblies, automotive, and structural applications, this bolt ensures secure fastening with its partial metric thread design. Ideal for professionals seeking reliable and durable fastening solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 10501260
Alternatively Known As: Hex bolt M12, Hex head bolt, Zinc plated hex bolt, High tensile bolt, Metric hex bolt
Technical Specifications
- Thread type x nominal diameter: M12
- Length: 60 mm
- Head height: 8 mm
- External drive: WS19
- Standards: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc plated, blue passivated
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length: 30 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8mm x 60mm x 19mm
- Weight: 0.05 kg
Key Features
- Steel grade 10.9 for high tensile strength
- Zinc-plated with blue passivation for corrosion resistance
- Hexagon head with outer hexagon drive for wrench compatibility
- Partial metric thread design for secure fastening
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate torque tools to ensure correct fastening and safety.
Applications
- Mechanical assemblies requiring high strength fastening
- Automotive and machinery construction
- Structural steel connections
- General industrial use
Standards & Compliance
- Complies with AS/NZS 1252 for high tensile bolts and screws
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Hexagon Bolt with Shank DIN 931 Steel 10.9 Zinc-Plated Blue Passivated M12x60mm 10 PCS is available for immediate purchase. Ideal for industrial, automotive, and construction applications.
