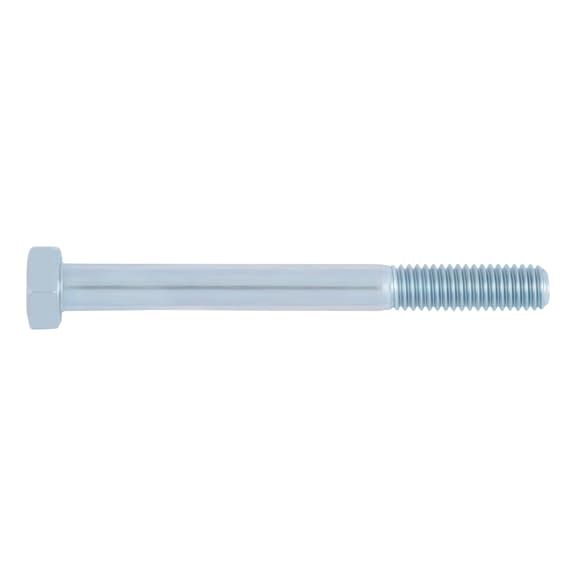

Hexagon Bolt DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Hexagon Bolt DIN 931 made from high-strength Steel 10.9 and featuring a zinc-plated, blue passivated finish. Ideal for mechanical assemblies and automotive applications, this bolt ensures secure fastening with its hexagon head and partial metric thread. RoHS-compliant for environmental safety, it's perfect for industrial and construction use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 10501265
Alternatively Known As: Hex bolt M12, Hex head bolt, Metric hex bolt, Zinc plated hex bolt, High tensile bolt

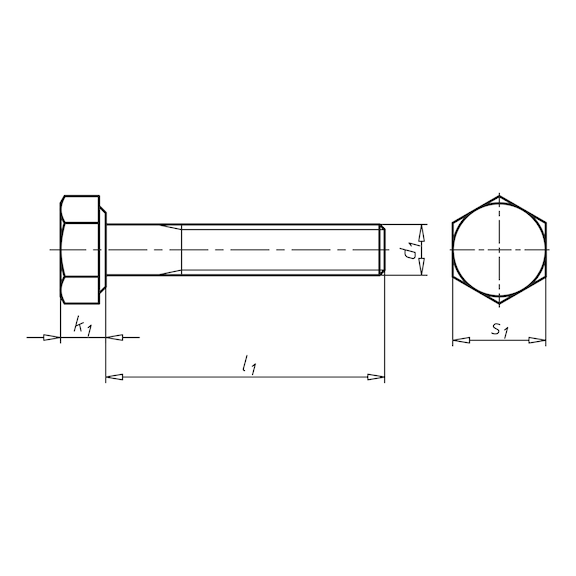

Technical Specifications
- Thread type x nominal diameter: M12
- Length: 65 mm
- Head height: 8 mm
- External drive: WS19
- Standards: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc plated with blue passivation
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length: 30 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8mm x 65mm x 19mm
- Weight: 0.1 kg
Key Features
- Steel grade 10.9 for high tensile strength
- Zinc-plated with blue passivation for corrosion resistance
- Hexagon head with outer hexagon drive for easy tightening
- Partial metric thread for secure fastening
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and fastening integrity.
Applications
- Mechanical assemblies requiring high strength fastening
- Automotive and machinery construction
- Structural steel connections
- General industrial use
Standards & Compliance
- Complies with AS/NZS 1252 for high tensile bolts and screws
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
