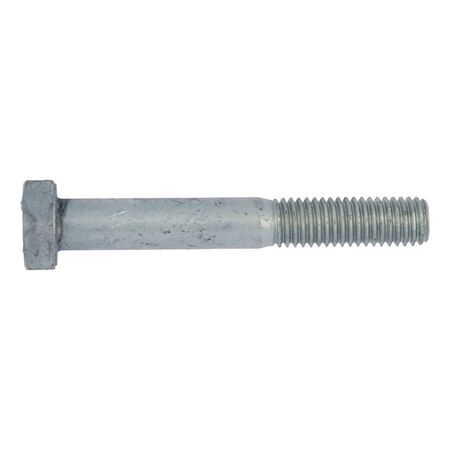

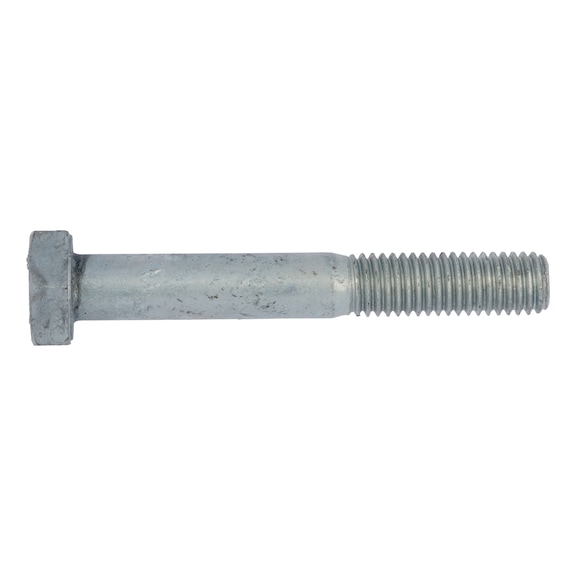

Hexagon Bolt DIN 931 Steel 8.8U | Hot Dip Galvanized | M12x120 | @Pack of 5 | by Wurth
Hexagon Bolt DIN 931 Steel 8.8U is designed for robust fastening in construction and industrial applications. With a hot dip galvanized finish, it offers superior corrosion resistance, making it ideal for structural steel connections and mechanical assemblies. This pack of 5 bolts ensures you have the right fasteners for your projects, providing reliability and strength where you need it most.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 931 Steel 8.8U | Hot Dip Galvanized | M12x120 | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 59612120
Alternatively Known As: Hex bolt M12x120, Hot dip galvanized hex bolt, DIN 931 bolt, Steel hex bolt 8.8U, Metric hex bolt
Technical Specifications
- Thread type x nominal diameter (d1): M12
- Length (l1): 120 mm
- Head height (k1): 8 mm
- External drive (s1): WS19
- Standards: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 30 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8mm x 120mm x 19mm
- Weight: 0.15 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
- ISO-compatible after hot dip zinc-plating.
- Hot dip galvanized surface for enhanced corrosion resistance.
- Hexagon head with outer hexagon drive (WS19).
- Partial metric thread design.
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure correct torque and secure fastening.
Applications
- Construction: Structural steel connections
- Mechanical assemblies requiring strong, corrosion-resistant fasteners
- Industrial machinery and equipment fastening
Standards & Compliance
- Complies with AS/NZS 1252 for high tensile bolts and fasteners used in structural applications.
Environmental Benefits
- Hot dip galvanizing provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagon Bolt with Shank DIN 931 Steel 8.8U Hot Dip Galvanised M12x120 is available for immediate purchase, ideal for construction, industrial, and mechanical fastening applications.
