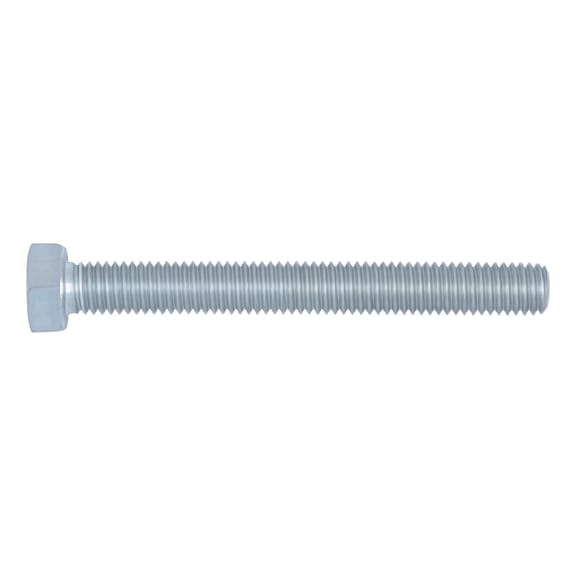

Hexagon Bolt DIN 933 | M10 Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Hexagon Bolt DIN 933 in M10 size is crafted from high tensile steel 10.9, ensuring robust performance in mechanical assemblies. With a zinc-plated finish and blue passivation, it offers 48 hours of corrosion protection, making it ideal for automotive and industrial applications. Designed for secure fastening, this bolt is RoHS-compliant, ensuring environmental safety while providing reliable strength.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 933 | M10 Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 10701025
Alternatively Known As: Hex bolt M10, Metric hex bolt, Zinc plated hex bolt, High tensile hex bolt, DIN 933 bolt
Technical Specifications
- Thread type x nominal diameter: M10
- Length: 25 mm
- Head height: 6.4 mm
- External drive: WS17
- Standards: DIN 933 (withdrawn, replaced by ISO 4017)
- Material: Steel
- Property class: 10.9
- Surface: Zinc plated with blue passivation
- Corrosion protection period: 48 hours
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 25mm x 17mm
- Weight: 0.05 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Full metric thread design for secure fastening
- Steel material with property class 10.9 for high tensile strength
- Zinc plated with blue passivation providing 48 hours corrosion protection
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by qualified personnel using appropriate tools is recommended to ensure correct torque and secure fastening.
Applications
- Mechanical assembly requiring high strength fasteners
- Automotive and machinery construction
- General industrial fastening applications
Standards & Compliance
- Complies with AS/NZS 1252 for high tensile bolts and screws
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth warranty policy.
Available Now
Wurth Hexagon Bolt M10x25mm Steel 10.9 Zinc-Plated Blue Passivated DIN 933 25 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
