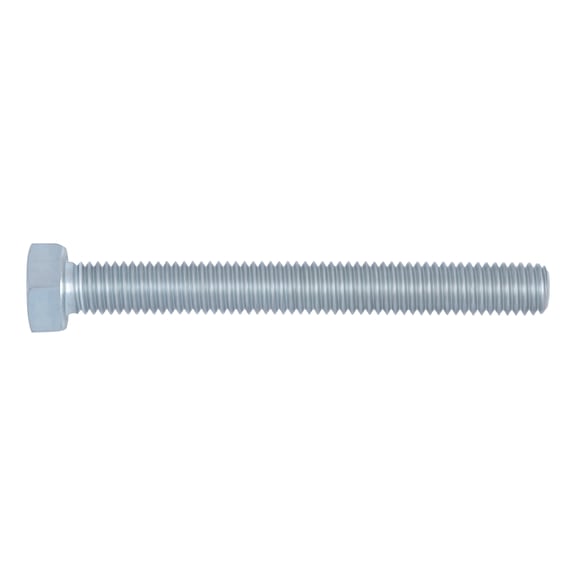

Hexagon Bolt DIN 933 | M10 Steel 10.9 | Zinc-Plated Blue Passivated | @Pack of 25 | by Wurth
Hexagon Bolt DIN 933 in M10 size is crafted from high-strength steel 10.9, featuring a zinc-plated blue passivation for enhanced corrosion resistance. Ideal for mechanical assembly, automotive repairs, and construction applications, this bolt ensures secure fastening with its full metric thread design. RoHS-compliant, it meets environmental safety standards, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 933 | M10 Steel 10.9 | Zinc-Plated Blue Passivated | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 10701045
Alternatively Known As: Hex bolt M10, Hex head bolt, Metric hex bolt, Zinc plated hex bolt, DIN 933 bolt, ISO 4017 bolt

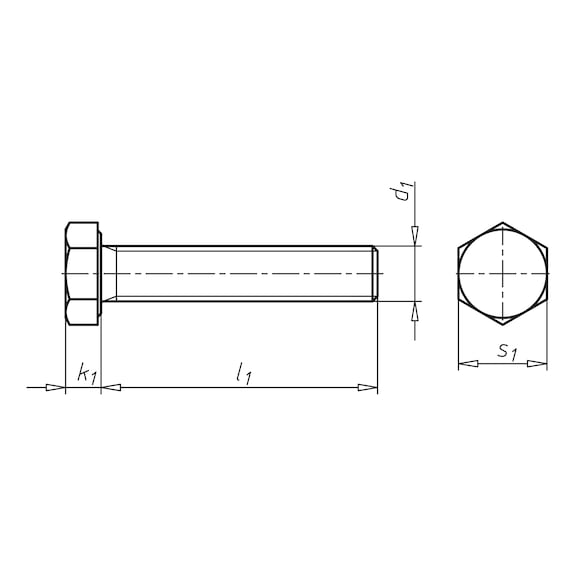

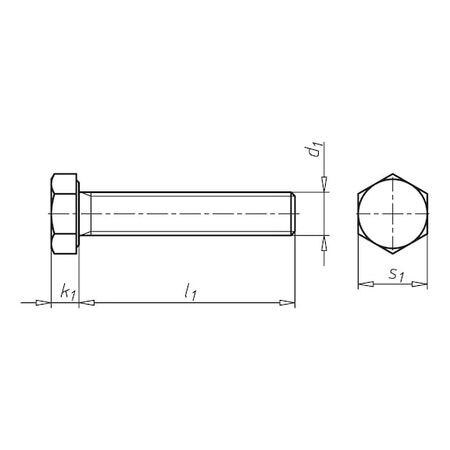

Technical Specifications
- Thread type x nominal diameter: M10
- Length: 45 mm
- Head height: 6.4 mm
- External drive size: WS17
- Standard: DIN 933 (replaced by ISO 4017)
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc plated with blue passivation
- Corrosion protection period: 48 hours
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread form: Standard metric thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 45mm x 17mm
- Weight: 0.05 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Full metric thread design for secure fastening
- Steel material with property class 10.9 for high strength
- Zinc plated with blue passivation providing 48 hours corrosion protection
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and fastening safety.
Applications
- Mechanical assembly and fastening
- Automotive repairs and maintenance
- Construction and structural applications
- Industrial machinery and equipment
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant product ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon Bolt M10x45mm Steel 10.9 Zinc-Plated Blue Passivated DIN 933 - 25 PCS is available for immediate purchase, ideal for mechanical, automotive, and construction fastening applications.
