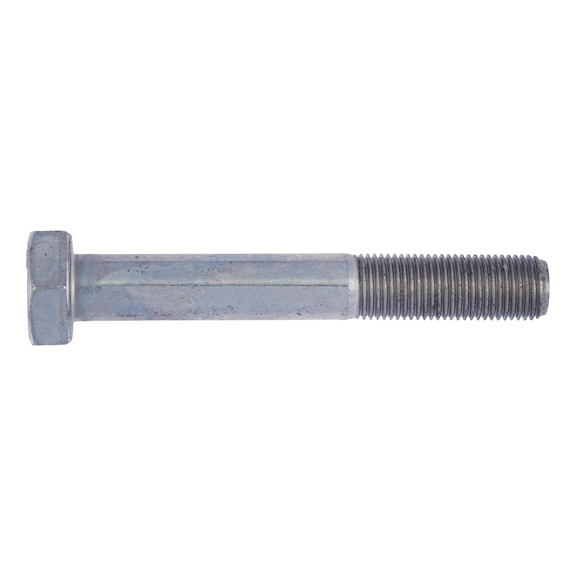

Hexagon Bolt DIN 960 | Strength Class 10.9 | Zinc-Nickel Plated | Fine Thread | @Pack of 5 | by Wurth
Hexagon Bolt DIN 960 with strength class 10.9 and zinc-nickel plating is perfect for high-strength mechanical assemblies. Designed for automotive and machinery construction, this bolt features a fine pitch thread and offers exceptional corrosion resistance with a protection period of 720 hours. Ideal for industrial applications, it ensures secure fastening and compliance with relevant standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 960 | Strength Class 10.9 | Zinc-Nickel Plated | Fine Thread | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 26341235
Alternatively Known As: Hex bolt M12 fine thread, Zinc nickel hex bolt, High strength hex bolt, DIN 960 bolt, ISO 8765 bolt
Technical Specifications
- Thread type x nominal diameter x pitch: M12 x 1.5
- Length: 35 mm
- Head height: 7.5 mm
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc nickel plating with transparent passivation (P3E)
- Corrosion protection period: 720 hours according to DIN EN ISO 9227-NSS
- Head type: Hexagon head
- Drive type: Outer hexagon (WS19)
- Thread form: Fine pitch thread
- Thread design: Partial thread
- Shank diameter: 12 mm
- Thread length: 22 mm
- RoHS compliant: Yes
- Product class: A
- Dimensions (H x L x W): 7.5mm x 35mm x 19mm
- Weight: 0.05 kg
Key Features
- Chromium (VI)-free compliant with EU End of Life Vehicles Directive
- High corrosion resistance with 720 hours base metal corrosion protection according to DIN EN ISO 9227-NSS
- Fine pitch metric thread with partial thread design
- Hexagon head with outer hexagon drive (WS19)
- Strength class 10.9 steel material
- Zinc-nickel plated surface with transparent passivation (P3E)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and secure fastening.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery construction
- Industrial equipment and structural applications
Standards & Compliance
- Complies with AS/NZS 4762 for high strength steel bolts used in structural applications
Environmental Benefits
- Chromium (VI)-free plating reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting sustainable recycling
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon bolt with shank and fine thread DIN 960 steel class 10.9 zinc-nickel-plated is available for immediate purchase, ideal for industrial and mechanical fastening applications.
