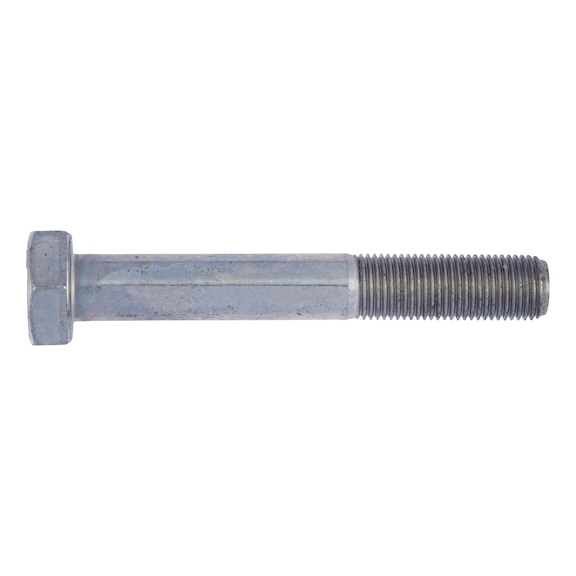

Hexagon Bolt DIN 960 | Strength Class 10.9 | Zinc-Nickel Plated | @Pack of 10 | by Wurth
Hexagon Bolt DIN 960 with strength class 10.9 and zinc-nickel plating is perfect for mechanical assemblies requiring high strength fasteners. Designed for automotive and machinery manufacturing, this bolt offers exceptional corrosion resistance with a 720-hour protection period, ensuring durability in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 960 | Strength Class 10.9 | Zinc-Nickel Plated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 26341040
Alternatively Known As: Hex bolt M10 fine thread, DIN 960 bolt, Zinc-nickel plated hex bolt, High strength hex bolt
Technical Specifications
- Thread type x nominal diameter x pitch: M10 x 1
- Length: 40 mm
- Head height: 6.4 mm
- Standards: DIN 960 (withdrawn, replaced by ISO 8765)
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc nickel plating with transparent passivation
- RoHS-compliant: Yes
- Corrosion protection period: 720 hours
- Head type: Hexagon head
- Drive type: Outer hexagon (WS17)
- Thread type: Metric fine pitch thread
- Thread design: Partial thread
- Shank diameter: 10 mm
- Thread length: 26 mm
- Product class: A
- Dimensions (H x L x W): 6.4mm x 40mm x 17mm
- Weight: 0.05 kg
Key Features
- Chromium (VI)-free, compliant with EU End of Life Vehicles Directive
- High corrosion resistance with 720 hours base metal corrosion protection according to DIN EN ISO 9227-NSS
- Fine pitch metric thread with partial thread design
- Hexagon head with outer hexagon drive (WS17)
- Strength class 10.9 steel material
- Zinc-nickel plated surface with transparent passivation (P3E)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and secure fastening.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery manufacturing
- Industrial equipment and structural applications
Standards & Compliance
- Complies with AS/NZS 4762 for high strength steel bolts (equivalent standard for mechanical fasteners)
Environmental Benefits
- Chromium (VI)-free plating reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting sustainable recycling
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon Bolt with shank and fine thread DIN 960 is available for immediate purchase, ideal for industrial, automotive, and mechanical assembly applications.
