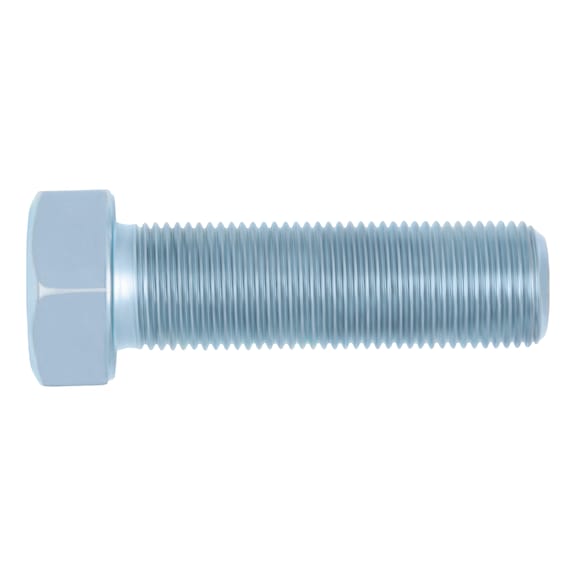

Hexagon Bolt DIN 961 | Fine Thread | Steel Grade 8.8 | Zinc-Plated Blue Passivated | by WURTH
The Hexagon Bolt DIN 961 is designed for robust mechanical assemblies, featuring a fine thread that extends to the head for enhanced fastening integrity. Made from steel grade 8.8 and zinc-plated with blue passivation, this bolt offers excellent corrosion resistance, making it ideal for automotive, machinery construction, and general industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 961 | Fine Thread | Steel Grade 8.8 | Zinc-Plated Blue Passivated | by WURTH
Brand: WURTH
SKU: 006412 25
Alternatively Known As: Hex bolt, Fine thread hex bolt, Threaded hex bolt, Zinc-plated hex bolt
Technical Specifications
- Thread standard: DIN 961 (withdrawn, replaced by ISO 8676)
- Material: Steel grade 8.8
- Surface finish: Zinc-plated with blue passivation
- Thread type: Fine thread
- Thread extends to the head
- Dimensions (H x L x W): 25mm x 25mm x 10mm
- Weight: 0.1 kg
Key Features
- Hexagon bolt with thread extending to the head
- Fine thread according to DIN 961 standard
- Steel grade 8.8 for high tensile strength
- Zinc-plated with blue passivation for corrosion resistance
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and fastening integrity.
Applications
- Mechanical assemblies requiring strong fastening
- Automotive and machinery construction
- General industrial use
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The WURTH Hexagon Bolt with thread to head and fine thread DIN 961 is available for immediate purchase, ideal for mechanical and industrial fastening applications.
