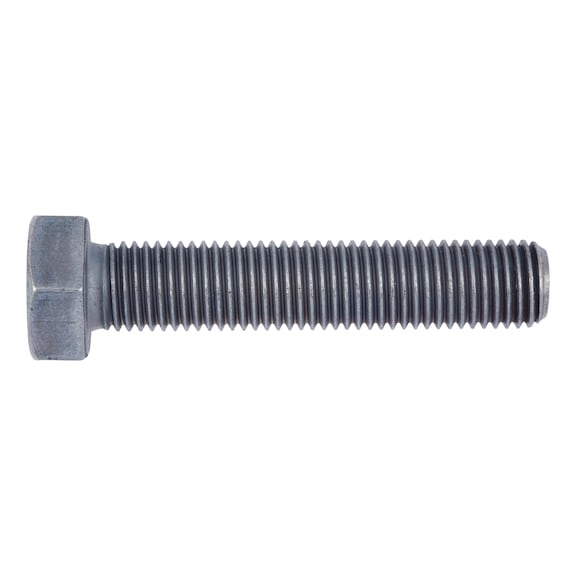

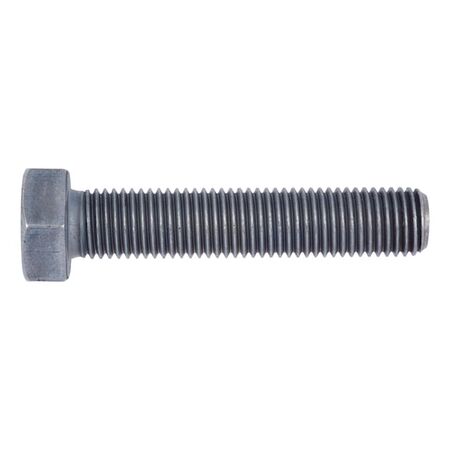

Hexagon Bolt DIN 961 | Strength Class 10.9 | Zinc-Nickel Plated | Fine Thread Design | @Pack of 10 | by Wurth
Hexagon Bolt DIN 961 with strength class 10.9 and zinc-nickel plating is perfect for high-strength mechanical assemblies. Designed for automotive and machinery applications, this bolt features a fine thread design for secure fastening and corrosion resistance of up to 720 hours, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt DIN 961 | Strength Class 10.9 | Zinc-Nickel Plated | Fine Thread Design | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 26351025
Alternatively Known As: Hex bolt M10 fine thread, DIN 961 bolt, Zinc nickel plated hex bolt, High strength hex bolt
Technical Specifications
- Thread type x nominal diameter x pitch: M10 x 1
- Length: 25 mm
- Head height: 6.4 mm
- Standards: DIN 961 (replaced by ISO 8676)
- Material: Steel
- Property class: 10.9
- Surface: Zinc nickel plating with transparent passivation
- Corrosion protection period: 720 hours
- Head type: Hexagon head
- Drive type: Outer hexagon (WS17)
- Thread type: Metric fine pitch full thread
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 25mm x 17mm
- Weight: 0.05 kg
Key Features
- Chromium (VI)-free, compliant with EU End of Life Vehicles Directive
- Corrosion resistance of 720 hours base metal corrosion per DIN EN ISO 9227-NSS
- Fine pitch full thread design for secure fastening
- Hexagon head with outer hexagon drive (WS17)
- Strength class 10.9 steel for high tensile strength
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery applications
- Precision engineering requiring fine pitch threads
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chromium (VI)-free plating reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting sustainable recycling
- Long corrosion resistance life reduces need for frequent replacements
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Available for immediate purchase, ideal for mechanical, automotive, and industrial fastening applications.
