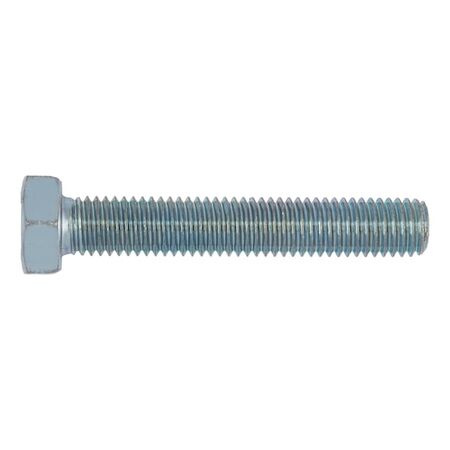

Hexagon Bolt ISO 4017 | Steel Grade 10.9 | Zinc-Plated & Blue Passivated | by WURTH
The Hexagon Bolt ISO 4017 is crafted from high-strength steel grade 10.9, featuring a zinc-plated and blue passivated finish for enhanced corrosion resistance. Ideal for mechanical assemblies, automotive, and construction applications, this bolt ensures secure fastening with its threaded design up to the head, complying with ISO 4017 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt ISO 4017 | Steel Grade 10.9 | Zinc-Plated & Blue Passivated | by WURTH
Brand: WURTH
SKU: 010706 30
Alternatively Known As: Hex bolt, Hex head bolt, High tensile bolt, Zinc plated bolt, ISO 4017 bolt
Technical Specifications
- Standard: ISO 4017 (replaces DIN 933)
- Material: Steel grade 10.9
- Finish: Zinc-plated, blue passivated
- Thread: Threaded up to the head
- Nominal dimensions extended
- Width across flats changed for M10, M12, M14, and M22
- Dimensions (H x L x W): 30mm x 30mm x 10mm
- Weight: 0.1 kg
Key Features
- Hexagon bolt with thread up to the head
- Steel grade 10.9 for high tensile strength
- Zinc-plated with blue passivation for corrosion resistance
- Complies with ISO 4017 standard
Professional Installation Requirements
- Installation by qualified personnel using appropriate torque tools is recommended to ensure secure fastening.
Applications
- Mechanical assemblies requiring high-strength fastening
- Automotive and machinery manufacturing
- Construction and structural applications
Standards & Compliance
- AS/NZS 4762 – High tensile steel bolts for structural engineering
Environmental Benefits
- Zinc plating provides corrosion resistance, extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The WURTH Hexagon Bolt ISO 4017 steel 10.9 zinc-plated blue passivated is available for immediate purchase, ideal for mechanical, automotive, and construction applications.
