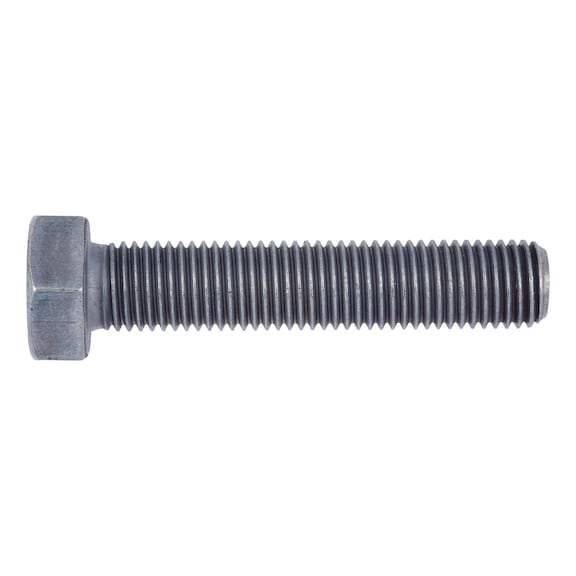

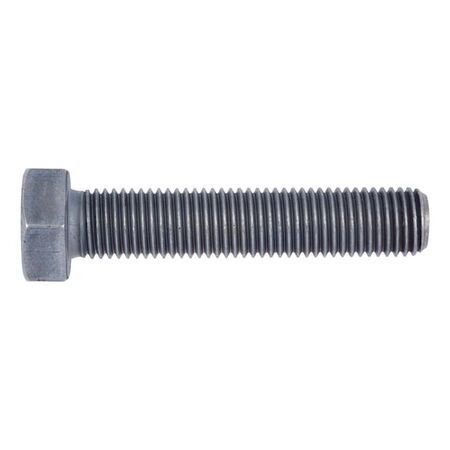

Hexagon Bolt M10 x 1 | Strength Class 10.9 | Zinc-Nickel Plated | Corrosion Resistant | @Pack of 10 | by Wurth
Hexagon Bolt M10 x 1 is designed for high strength applications, featuring a strength class of 10.9 and zinc-nickel plating for superior corrosion resistance. Ideal for mechanical assemblies and automotive applications, this bolt ensures secure fastening with its fine pitch thread and hexagon head design, making it perfect for precision engineering tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt M10 x 1 | Strength Class 10.9 | Zinc-Nickel Plated | Corrosion Resistant | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 26351040
Alternatively Known As: Fine Thread Hex Bolt, M10 Fine Thread Bolt, Zinc Nickel Hex Bolt, High Strength Hex Bolt
Technical Specifications
- Thread type x nominal diameter x pitch: M10 x 1
- Length: 40 mm
- Head height: 6.4 mm
- Standards: DIN 961 (replaced by ISO 8676)
- Material: Steel
- Property class: 10.9
- Surface: Zinc nickel plating with transparent passivation
- Corrosion protection period: 720 hours
- Head type: Hexagon head
- Drive type: Outer hexagon
- External drive size: WS17
- Thread type: Metric fine pitch thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 40mm x 17mm
- Weight: 0.05 kg
Key Features
- Steel material with strength class 10.9 for high tensile strength
- Zinc-nickel plating with transparent passivation (P3E) for enhanced corrosion resistance
- Chromium (VI)-free, compliant with EU End of Life Vehicles Directive
- Corrosion resistance of 720 hours base metal corrosion according to DIN EN ISO 9227-NSS
- Full fine pitch thread (M10 x 1) with thread to head design
- Hexagon head with outer hexagon drive (WS17)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery applications
- Precision engineering requiring fine pitch threads
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium (VI)-free plating reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting sustainable recycling
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
Wurth Hexagon Bolt M10 x 1 Fine Thread DIN 961 Steel Class 10.9 Zinc-Nickel Plated 10 PCS is available for immediate purchase, ideal for mechanical and automotive applications requiring high strength and corrosion resistance.
