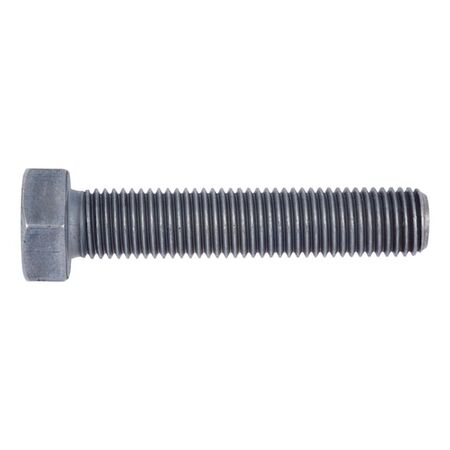

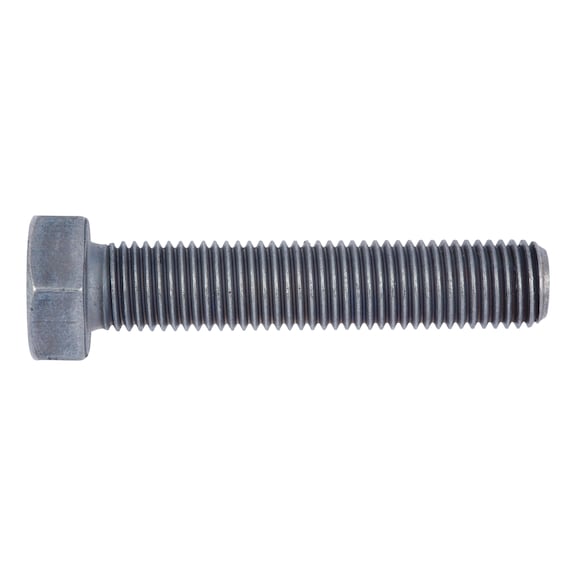

Hexagon Bolt M10 x 1 DIN 961 | Strength Class 10.9 | Zinc-Nickel Plated | @Pack of 10 | by Wurth
Hexagon Bolt M10 x 1 DIN 961 is designed for high strength fastening applications, featuring a strength class of 10.9 and zinc-nickel plating for enhanced corrosion resistance. Ideal for automotive, industrial, and construction sectors, this bolt ensures secure fastening with its fine pitch full thread design and hexagon head for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt M10 x 1 DIN 961 | Strength Class 10.9 | Zinc-Nickel Plated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 26351030
Alternatively Known As: Fine Thread Hex Bolt, M10 Fine Thread Bolt, Zinc Nickel Hex Bolt, High Strength Hex Bolt, DIN 961 Bolt

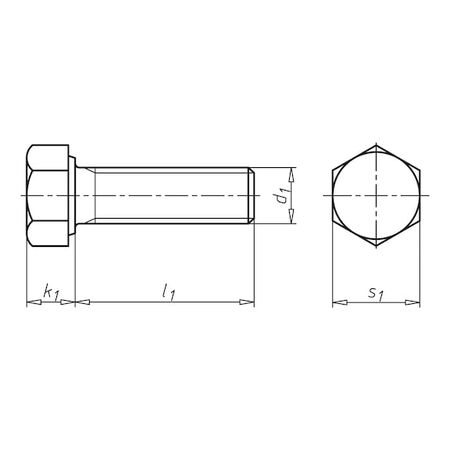

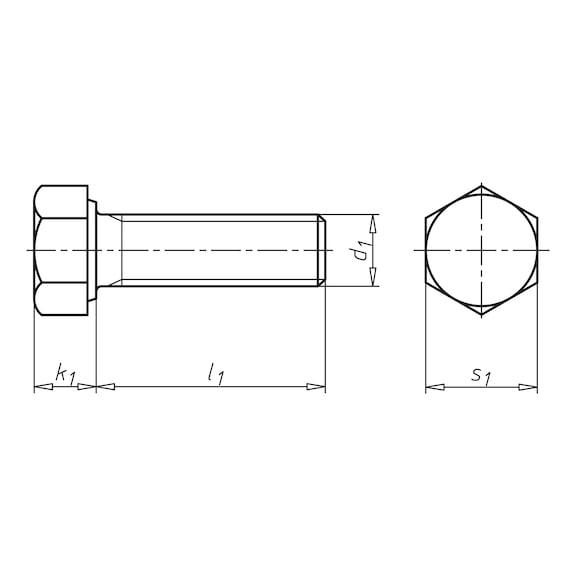

Technical Specifications
- Thread type x nominal diameter x pitch: M10 x 1
- Length: 30 mm
- Head height: 6.4 mm
- Standards: DIN 961 (replaced by ISO 8676)
- Material: Steel
- Property class: 10.9
- Surface: Zinc nickel plating
- Corrosion protection period: 720 hours
- Head type: Hexagon head
- Drive type: Outer hexagon
- External drive size: WS17
- Thread type: Metric thread
- Pitch: 1 mm
- Thread form: Fine pitch thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.4mm x 30mm x 17mm
- Weight: 0.05 kg
Key Features
- Chromium (VI)-free, compliant with EU End of Life Vehicles Directive
- Corrosion resistance of 720 hours base metal corrosion per DIN EN ISO 9227-NSS
- Fine pitch full thread design for secure fastening
- Hexagon head with outer hexagon drive (WS17) for easy installation
- Strength class 10.9 steel for high tensile strength
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and vehicle manufacturing and repair
- Industrial machinery and equipment
- Construction and structural applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium (VI)-free plating reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting recyclability
- Long corrosion resistance life reduces need for frequent replacements
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth Hexagon Bolt M10 x 1 Fine Thread DIN 961 Steel Zinc-Nickel Plated Class 10.9 is available for immediate purchase, ideal for high strength fastening applications in automotive, industrial, and construction sectors.
