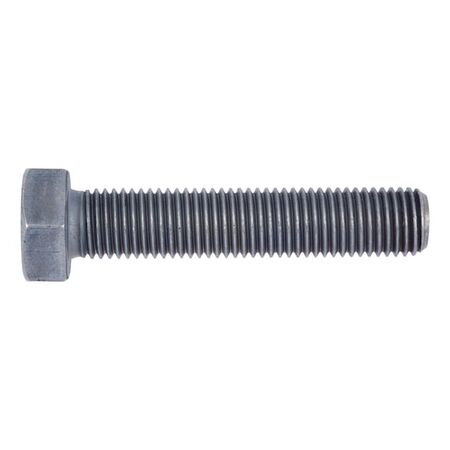

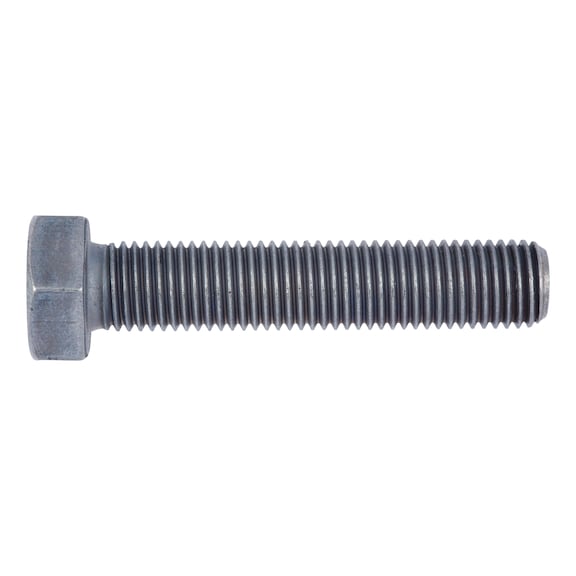

Hexagon Bolt M12 x 1.5 | Strength Class 10.9 | Zinc-Nickel Plated | Fine Thread Design | @Pack of 5 | by Wurth
Hexagon Bolt M12 x 1.5 with strength class 10.9 and zinc-nickel plating — ideal for high strength mechanical and automotive applications. Built for industrial use, this bolt features a fine thread design for secure fastening and corrosion resistance of 720 hours, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt M12 x 1.5 | Strength Class 10.9 | Zinc-Nickel Plated | Fine Thread Design | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 26351230
Alternatively Known As: Hex bolt M12 fine thread, Zinc nickel hex bolt, High strength hex bolt, DIN 961 bolt, ISO 8676 bolt
Technical Specifications
- Thread type x nominal diameter x pitch: M12 x 1.5
- Length: 30 mm
- Head height: 7.5 mm
- Standards: DIN 961 (replaced by ISO 8676)
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc nickel plating
- Corrosion protection period: 720 hours
- Head type: Hexagon head
- Drive type: Outer hexagon
- External drive size: WS19
- Thread type: Metric fine pitch full thread
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7.5mm x 30mm x 19mm
- Weight: 0.05 kg
Key Features
- Chromium (VI)-free compliant with EU End of Life Vehicles Directive
- Corrosion resistance of 720 hours base metal corrosion per DIN EN ISO 9227-NSS
- Fine pitch full thread design for secure fastening
- Hexagon head with outer hexagon drive (WS19) for easy installation
- Strength class 10.9 steel for high tensile strength
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery applications
- Industrial equipment and structural connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chromium (VI)-free plating reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting sustainable recycling
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagon Bolt M12 x 1.5 Fine Thread Steel Zinc-Nickel Plated Class 10.9 is available for immediate purchase, ideal for high strength mechanical and automotive applications.
