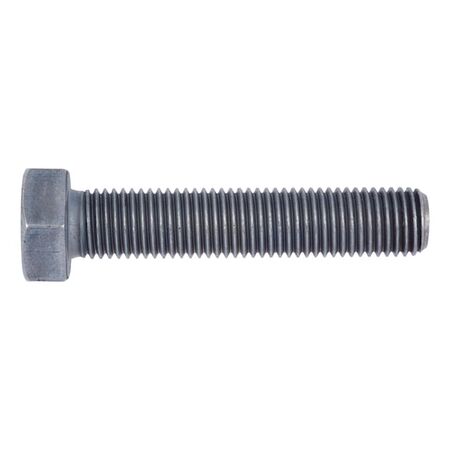

Hexagon Bolt M12 x 1.5 | Strength Class 10.9 | Zinc-Nickel Plated | Fine Thread Design | @Pack of 5 | by Wurth
Hexagon Bolt M12 x 1.5 is designed for high-strength applications, featuring a strength class of 10.9 and a fine thread design for secure fastening. With zinc-nickel plating for enhanced corrosion resistance, this bolt is perfect for mechanical assemblies in automotive and industrial settings, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt M12 x 1.5 | Strength Class 10.9 | Zinc-Nickel Plated | Fine Thread Design | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 26351240
Alternatively Known As: Hex bolt M12 fine thread, Zinc nickel plated hex bolt, High strength hex bolt, DIN 961 bolt, ISO 8676 bolt
Technical Specifications
- Thread type x nominal diameter x pitch: M12 x 1.5
- Length: 40 mm
- Head height: 7.5 mm
- Standards: DIN 961 (withdrawn, replaced by ISO 8676)
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc nickel plating, transparent passivated (P3E)
- Corrosion protection period: 720 hours
- Head type: Hexagon head
- Drive type: Outer hexagon
- External drive size: WS19
- Thread form: Fine pitch full thread
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7.5mm x 40mm x 19mm
- Weight: 0.05 kg
Key Features
- Chromium (VI)-free compliant with EU End of Life Vehicles Directive
- Corrosion resistance of 720 hours base metal corrosion per DIN EN ISO 9227-NSS
- Fine pitch full thread design for secure fastening
- Hexagon head with outer hexagon drive (WS19) for easy installation
- Strength class 10.9 steel for high tensile strength
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and secure fastening.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery applications
- Industrial equipment and structural connections
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium (VI)-free plating reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting sustainable recycling
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon Bolt M12 x 1.5 Fine Thread Steel Zinc-Nickel Plated Class 10.9 is available for immediate purchase, ideal for high strength mechanical and industrial applications.
