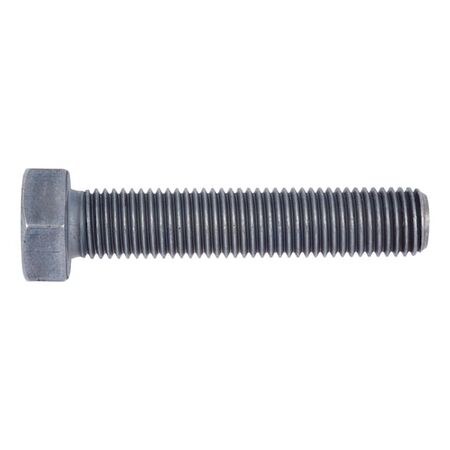

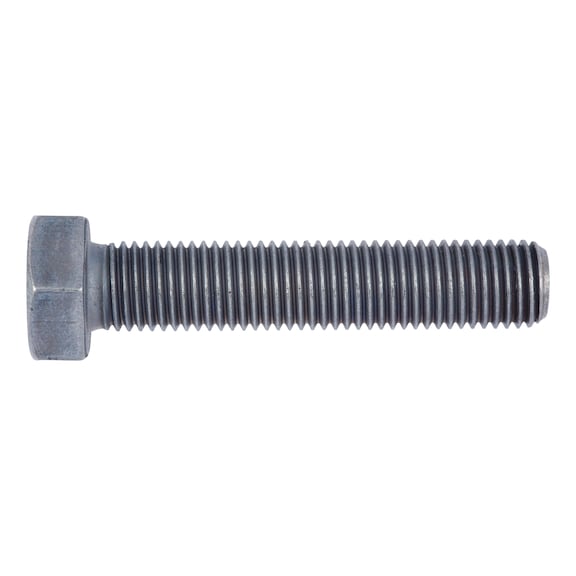

Hexagon Bolt M12 x 1.5 | Strength Class 10.9 | Zinc-Nickel Plated | Corrosion Resistant | @Pack of 5 | by Wurth
Hexagon Bolt M12 x 1.5 is designed for high-strength applications, featuring a strength class of 10.9 and zinc-nickel plating for superior corrosion resistance. Ideal for automotive and industrial use, this bolt ensures secure fastening with its fine pitch full thread design, making it perfect for mechanical assemblies and structural connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt M12 x 1.5 | Strength Class 10.9 | Zinc-Nickel Plated | Corrosion Resistant | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 26351235
Alternatively Known As: Hex bolt, Fine thread bolt, M12 bolt, Zinc-nickel plated bolt, High strength hex bolt
Technical Specifications
- Thread type x nominal diameter x pitch: M12 x 1.5
- Length: 35 mm
- Head height: 7.5 mm
- Standards: DIN 961 (withdrawn, replaced by ISO 8676)
- Material: Steel
- Property class: 10.9
- Surface: Zinc nickel plating with transparent passivation (P3E)
- Corrosion protection period: 720 hours
- Head type: Hexagon head
- Drive type: Outer hexagon
- External drive size: WS19
- Thread type: Metric fine pitch thread
- Thread design: Full thread
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7.5mm x 35mm x 19mm
- Weight: 0.05 kg
Key Features
- Chromium (VI)-free, compliant with EU End of Life Vehicles Directive
- Corrosion resistance of 720 hours base metal corrosion according to DIN EN ISO 9227-NSS
- Fine pitch full thread design for secure fastening
- Hexagon head with outer hexagon drive (WS19)
- Strength class 10.9 steel for high tensile strength
- Zinc-nickel plated with transparent passivation (P3E) for enhanced corrosion protection
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery applications
- Industrial equipment and structural connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chromium (VI)-free plating reduces environmental and health hazards
- Complies with EU End of Life Vehicles Directive promoting sustainable recycling
Warranty Information
Wurth provides warranty coverage against manufacturing defects as per company policy.
Available Now
The Wurth Hexagon Bolt M12 x 1.5 Fine Thread Zinc-Nickel Plated Class 10.9 is available for immediate purchase, ideal for automotive, industrial, and mechanical fastening applications.
