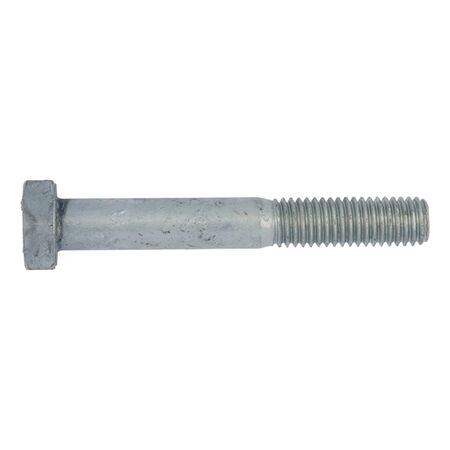

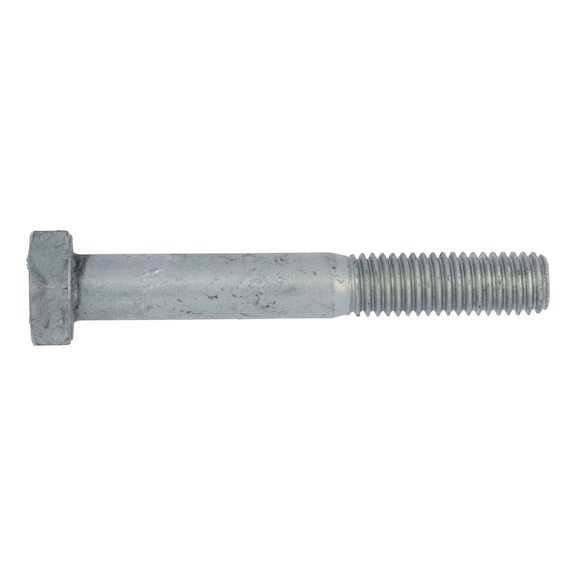

Hexagon Bolt with Shank DIN 931 | Hot Dip Galvanised | M12x110 | Property Class 8.8U | @Pack of 5 | by Wurth
Hexagon Bolt with Shank DIN 931 is designed for robust fastening in construction, industrial, and automotive applications. With a hot dip galvanized surface for superior corrosion resistance and a property class of 8.8U, this M12x110 bolt ensures high strength and durability. Ideal for structural assemblies and machinery, it’s perfect for professionals seeking reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt with Shank DIN 931 | Hot Dip Galvanised | M12x110 | Property Class 8.8U | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 59612110
Alternatively Known As: Hex bolt M12x110, Hot dip galvanized hex bolt, DIN 931 bolt, Steel hex bolt, Metric hex bolt
Technical Specifications
- Thread type x nominal diameter: M12
- Length: 110 mm
- Head height: 8 mm
- External drive: WS19
- Standards: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length: 30 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8mm x 110mm x 19mm
- Weight: 0.15 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
- ISO-compatible after hot dip zinc-plating.
- Hot dip galvanized surface for enhanced corrosion resistance.
- Hexagon head with outer hexagon drive (WS19) for easy tightening.
- Partial metric thread design with 30 mm thread length.
- Property class 8.8U steel for high strength.
Professional Installation Requirements
- Installation by qualified personnel using appropriate tools is recommended to ensure proper torque and secure fastening.
Applications
- Construction: Structural assemblies and frameworks
- Industrial: Machinery and equipment fastening
- Automotive: Vehicle assembly and repair
- General: Any application requiring strong, corrosion-resistant hex bolts
Standards & Compliance
- Complies with AS/NZS 1252 – High tensile bolts for structural engineering
Environmental Benefits
- Hot dip galvanizing provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Wurth provides standard manufacturer warranty covering defects in material and workmanship.
Available Now
The Wurth Hexagon Bolt with Shank DIN 931 Steel 8.8U Hot Dip Galvanised M12x110 is available for immediate purchase. Ideal for construction, industrial, and automotive fastening applications.
