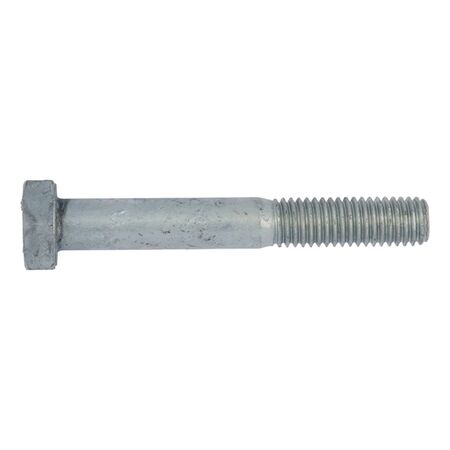

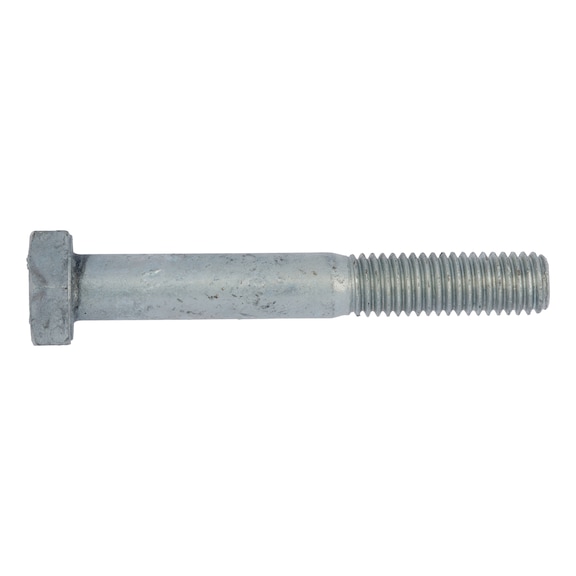

Hexagon Bolt with Shank DIN 931 | Hot Dip Galvanised | M12x70 | 8.8U Strength | @Pack of 10 | by Wurth
Hexagon Bolt with Shank DIN 931 is designed for robust fastening in construction and industrial applications. With a hot dip galvanized finish for superior corrosion resistance and a property class of 8.8U, this M12x70 bolt ensures secure joints in machinery assembly and heavy equipment. Ideal for professionals seeking reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt with Shank DIN 931 | Hot Dip Galvanised | M12x70 | 8.8U Strength | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5961270
Alternatively Known As: Hex bolt M12x70, Hot dip galvanized hex bolt, DIN 931 bolt, Steel hex bolt, Metric hex bolt
Technical Specifications
- Thread type x nominal diameter (d1): M12
- Length (l1): 70 mm
- Head height (k1): 8 mm
- External drive (s1): WS19
- Standards: DIN 931 (replaced by ISO 4014)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 30 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8mm x 70mm x 19mm
- Weight: 0.15 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied
- ISO-compatible after hot dip zinc-plating
- Hot dip galvanized surface for enhanced corrosion resistance
- Hexagon head with outer hexagon drive (WS19) for easy tightening
- Partial metric thread design for secure fastening
- Complies with DIN 931 standard (withdrawn and replaced by ISO 4014)
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Construction and structural applications requiring strong bolted joints
- Machinery assembly and maintenance
- Automotive and heavy equipment fastening
- General industrial fastening requiring corrosion resistance
Standards & Compliance
- Complies with AS/NZS 1252 for high tensile bolts and screws
Environmental Benefits
- Hot dip galvanizing provides long-lasting corrosion protection reducing the need for frequent replacements
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Wurth provides standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagon Bolt with Shank DIN 931 Steel 8.8U Hot Dip Galvanised M12x70 is available for immediate purchase, ideal for construction, industrial, and machinery fastening applications.
