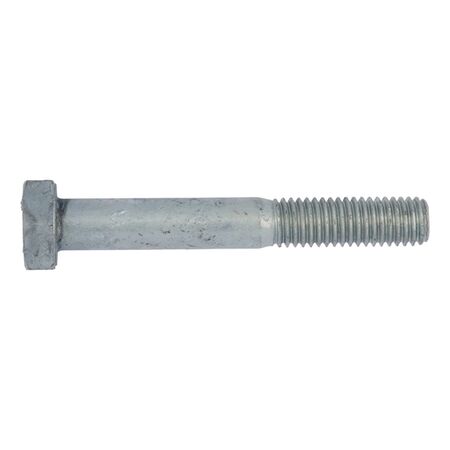

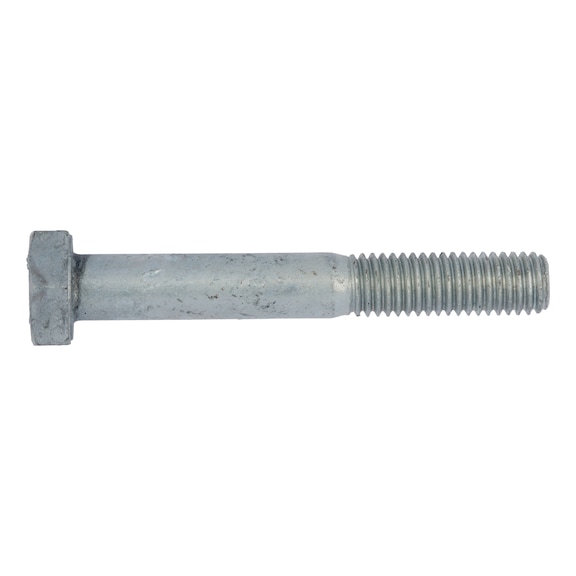

Hexagon Bolt with Shank DIN 931 | Hot Dip Galvanized | M12x130 | Property Class 8.8U | @Pack of 5 | by Wurth
Hexagon Bolt with Shank DIN 931 is designed for robust fastening in construction and industrial applications. With a hot dip galvanized finish for superior corrosion resistance and a property class of 8.8U, this M12x130 bolt ensures high strength and durability. Ideal for structural steel connections and mechanical assemblies, it’s perfect for outdoor environments where reliability is crucial.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt with Shank DIN 931 | Hot Dip Galvanized | M12x130 | Property Class 8.8U | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 59612130
Alternatively Known As: Hex Bolt M12x130, Hot Dip Galvanized Hex Bolt, DIN 931 Bolt, Structural Hex Bolt, Metric Hex Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M12
- Length (l1): 130 mm
- Head height (k1): 8 mm
- External drive (s1): WS19
- Standards: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 8.8U
- Surface: Hot dip galvanized
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (metric thread) (b): 36 mm
- Product class: B
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8mm x 130mm x 19mm
- Weight: 0.15 kg
Key Features
- Manufactured with undersized thread in tolerance class 6AZ (thread play) before surface protection is applied (DIN EN ISO 10684).
- ISO-compatible after hot dip zinc-plating.
- Hot dip galvanized surface for enhanced corrosion resistance.
- Hexagon head with outer hexagon drive (WS19).
- Partial metric thread design with 36 mm thread length.
- Property class 8.8U steel for high strength.
Professional Installation Requirements
- Installation by a qualified tradesperson or engineer is recommended to ensure proper torque and secure fastening.
Applications
- Construction: Structural steel connections
- Mechanical assemblies requiring strong bolted joints
- Industrial machinery and equipment fastening
- Outdoor and corrosive environments due to hot dip galvanising
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Hot dip galvanising provides long-lasting corrosion protection, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagon Bolt with Shank DIN 931 Steel 8.8U Hot Dip Galvanised M12x130 is available for immediate purchase, ideal for construction, industrial, and outdoor applications requiring durable and corrosion-resistant fasteners.
