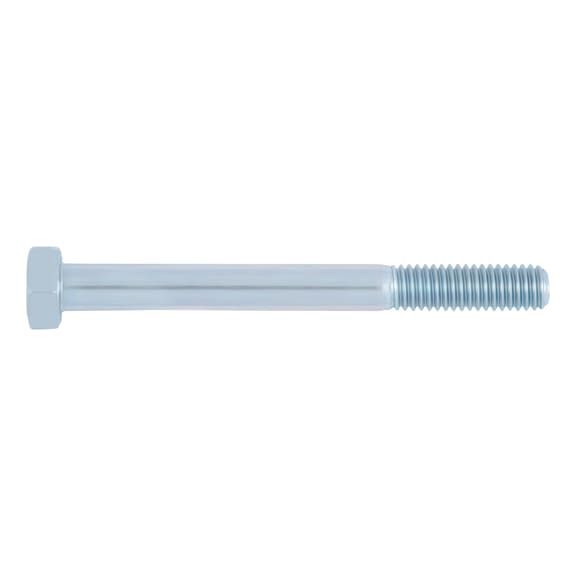

Hexagon Bolt with Shank DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Hexagon bolt with shank DIN 931, made from high tensile steel 10.9, is perfect for mechanical assemblies and automotive applications. With a zinc-plated and blue passivated finish, it offers excellent corrosion resistance. Ideal for structural steel connections, this bolt ensures secure fastening and compliance with RoHS standards, making it a reliable choice for industrial use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt with Shank DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 10501060
Alternatively Known As: Hex bolt M10, Hex head bolt, Metric hex bolt, Zinc plated hex bolt, High tensile bolt
Technical Specifications
- Thread type x nominal diameter (d1): M10
- Length (l1): 60 mm
- Head height (k1): 7 mm
- External drive (s1): WS17
- Standards: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 10.9
- Surface: Zinc plated, blue passivated
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length (b): 26 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 60mm x 17mm
- Weight: 0.05 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Steel material with property class 10.9 for high tensile strength
- Zinc plated with blue passivation for corrosion resistance
- Partial metric thread design for secure fastening
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by qualified personnel using appropriate torque tools is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring high strength fastening
- Automotive and machinery construction
- Structural steel connections
- General industrial use
Standards & Compliance
- Complies with AS/NZS 1252 for high tensile bolts
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth Hexagon Bolt with Shank DIN 931 Steel 10.9 Zinc-Plated Blue Passivated M10x60mm 10 PCS is available now for immediate purchase. Ideal for mechanical, automotive, and industrial fastening applications.
