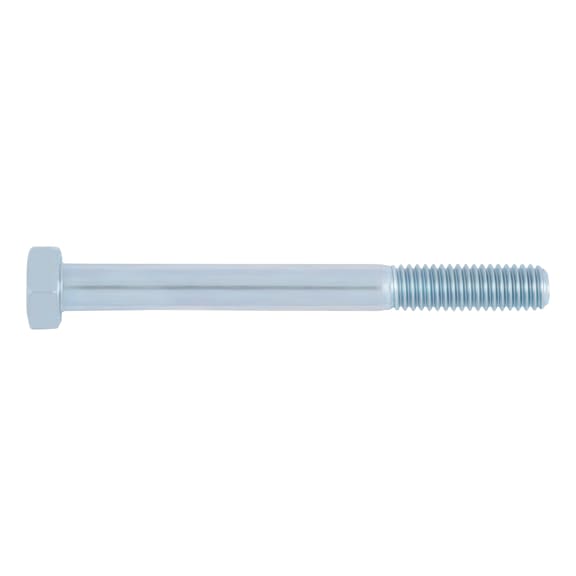

Hexagon Bolt with Shank DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Hexagon Bolt with Shank DIN 931 is crafted from high-strength Steel 10.9, featuring a zinc-plated and blue passivated finish for superior corrosion resistance. Ideal for mechanical assemblies, automotive, and industrial applications, this bolt ensures secure fastening with its partial metric thread design and hexagon head for easy tightening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt with Shank DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 10501080
Alternatively Known As: Hex bolt M10, Hex head bolt, Metric hex bolt, Zinc plated bolt, High tensile bolt
Technical Specifications
- Thread type x nominal diameter: M10
- Length: 80 mm
- Head height: 7 mm
- External drive: WS17
- Standards: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 10.9
- Surface: Zinc plated with blue passivation
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length: 26 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 80mm x 17mm
- Weight: 0.1 kg
Key Features
- Steel material with property class 10.9 for high strength
- Zinc plated with blue passivation for corrosion resistance
- Hexagon head with outer hexagon drive for easy tightening
- Partial metric thread design for secure fastening
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by qualified personnel using appropriate torque tools is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring high strength fastening
- Automotive and machinery construction
- Structural and industrial equipment fastening
Standards & Compliance
- Complies with AS/NZS 1252 for high strength bolts and screws
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hexagon Bolt with Shank DIN 931 Steel 10.9 Zinc-Plated Blue Passivated M10 x 80mm 10 PCS is available for immediate purchase. Ideal for mechanical, automotive, and industrial fastening applications.
