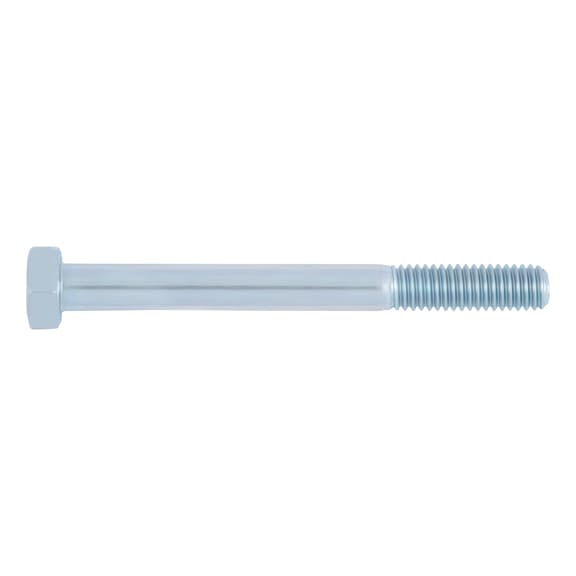

Hexagon Bolt with Shank DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Hexagon Bolt with Shank DIN 931 is crafted from high-strength steel 10.9, featuring a zinc-plated and blue passivated finish for enhanced corrosion resistance. Ideal for mechanical assemblies and automotive construction, this bolt ensures secure fastening with its partial metric thread design. Perfect for industrial applications, it meets RoHS compliance for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt with Shank DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 10501090
Alternatively Known As: Hex bolt M10, Hex head bolt, Zinc plated hex bolt, Metric hex bolt, DIN 931 bolt, ISO 4014 bolt

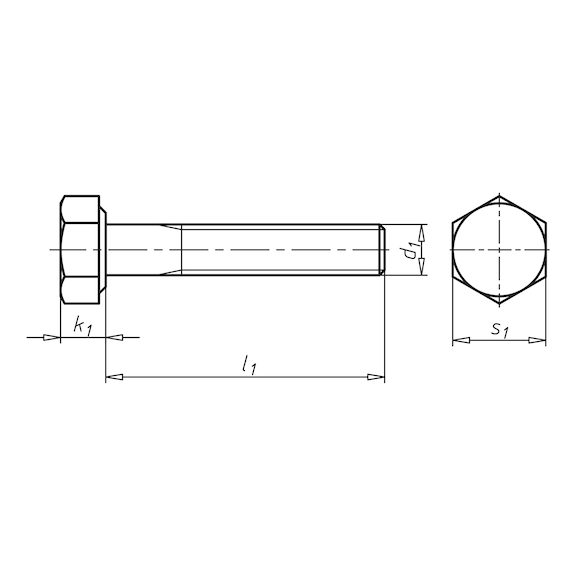

Technical Specifications
- Thread type x nominal diameter: M10
- Length: 90 mm
- Head height: 7 mm
- External drive: WS17
- Standards: DIN 931 (replaced by ISO 4014)
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc plated, blue passivated
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length: 26 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 7mm x 90mm x 17mm
- Weight: 0.1 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Made from high-strength steel property class 10.9
- Zinc plated with blue passivation for corrosion resistance
- Partial metric thread design for secure fastening
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and secure fastening.
Applications
- Mechanical assemblies requiring high strength fastening
- Automotive and machinery construction
- Structural steel connections
- General industrial use
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon Bolt with Shank DIN 931 Steel 10.9 Zinc-Plated Blue Passivated M10 x 90mm 10 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
