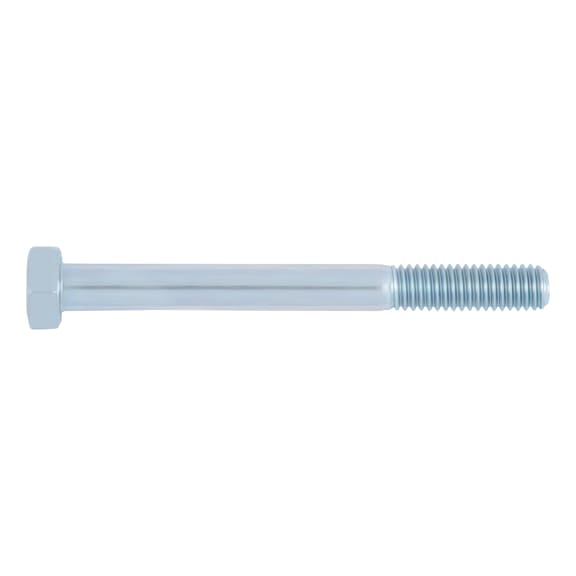

Hexagon Bolt with Shank DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Hexagon bolt with shank DIN 931 made from high-strength steel 10.9, featuring zinc plating and blue passivation for enhanced corrosion resistance. Ideal for mechanical assemblies, automotive, and structural applications, this bolt ensures secure fastening with its partial metric thread design. Perfect for industrial use, it meets high tensile standards for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt with Shank DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 10501255
Alternatively Known As: Hex bolt M12, Hex head bolt, Metric hex bolt, Zinc plated hex bolt, High tensile bolt

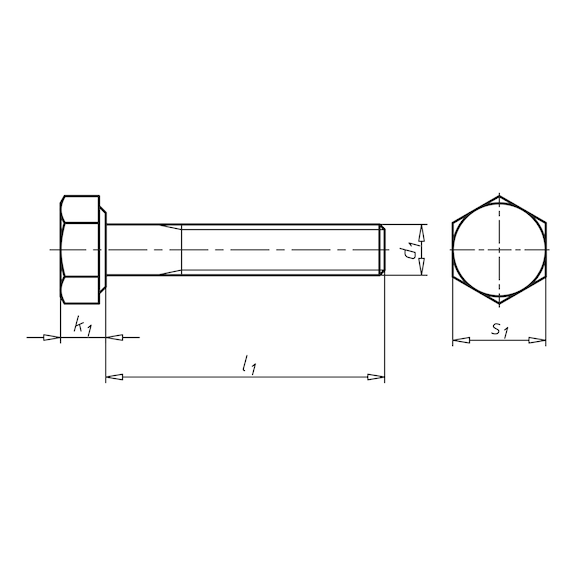

Technical Specifications
- Thread type x nominal diameter: M12
- Length: 55 mm
- Head height: 8 mm
- External drive: WS19
- Standards: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 10.9
- Surface: Zinc plated with blue passivation
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length: 30 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8mm x 55mm x 19mm
- Weight: 0.05 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Made from high-strength steel property class 10.9
- Zinc plated with blue passivation for corrosion resistance
- Partial metric thread design for secure fastening
- Compliant with DIN 931 standard (withdrawn and replaced by ISO 4014)
Professional Installation Requirements
- Installation by qualified personnel using appropriate torque tools is recommended to ensure secure fastening and safety.
Applications
- Mechanical assemblies requiring high strength fastening
- Automotive and machinery construction
- Structural steel connections
- General industrial use
Standards & Compliance
- Complies with AS/NZS 1252 for high tensile bolts and screws
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
Wurth Hexagon Bolt with Shank DIN 931 Steel 10.9 Zinc-Plated Blue Passivated M12 x 55mm 10 PCS is available for immediate purchase, ideal for industrial, automotive, and construction applications.
