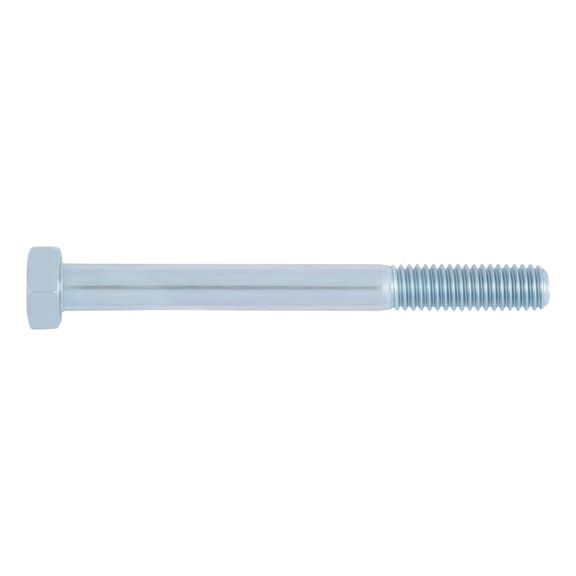

Hexagon Bolt with Shank DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 5 | by Wurth
Hexagon bolt with shank DIN 931 made from high tensile Steel 10.9, featuring a zinc-plated surface with blue passivation for enhanced corrosion resistance. Ideal for mechanical assemblies and structural steel connections, this bolt ensures secure fastening in automotive and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt with Shank DIN 931 | Steel 10.9 | Zinc-Plated & Blue Passivated | @Pack of 5 | by Wurth
Brand: Wurth
SKU: 105012120
Alternatively Known As: Hex bolt M12, Hex head bolt, Zinc plated hex bolt, High tensile bolt, Metric hex bolt
Technical Specifications
- Thread type x nominal diameter: M12
- Length: 120 mm
- Head height: 8 mm
- External drive: WS19
- Standards: DIN 931 (withdrawn, replaced by ISO 4014)
- Material: Steel
- Property class: 10.9
- Surface: Zinc plated with blue passivation
- Head type: Hexagon head
- Drive type: Outer hexagon
- Thread type: Metric thread
- Thread form: Standard metric thread
- Thread design: Partial thread
- Thread length: 30 mm
- Product class: A
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8mm x 120mm x 19mm
- Weight: 0.15 kg
Key Features
- Hexagon head with outer hexagon drive for easy tightening
- Steel material with property class 10.9 for high tensile strength
- Zinc plated surface with blue passivation for corrosion resistance
- Partial metric thread design for secure fastening
- Compliant with DIN 931 standard (withdrawn, replaced by ISO 4014)
Professional Installation Requirements
- Installation by a qualified tradesperson or engineer is recommended to ensure correct torque and secure fastening.
Applications
- Mechanical assemblies requiring high strength fastening
- Automotive and machinery construction
- Structural steel connections
- General industrial and construction use
Standards & Compliance
- AS/NZS 1252 – High tensile bolts for structural steel connections
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste and replacement frequency
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth Hexagon Bolt with Shank DIN 931 Steel 10.9 Zinc-Plated Blue Passivated M12 x 120mm 5 PCS is available for immediate purchase. Ideal for industrial, automotive, and construction fastening applications.
