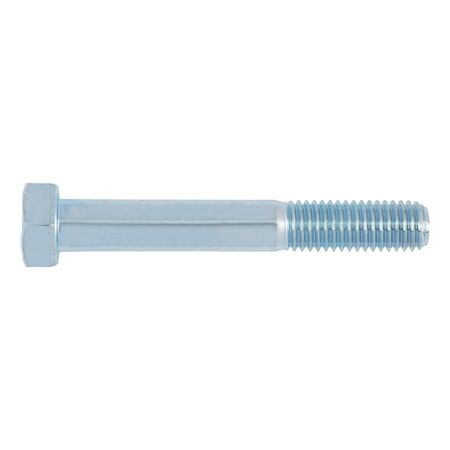

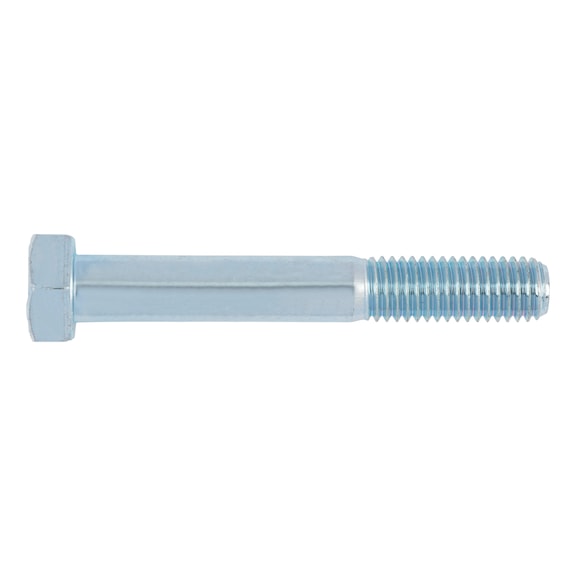

Hexagon Bolt with Shank ISO 4014 | Steel Grade 10.9 | Zinc-Plated & Blue Passivated | by WURTH
Hexagon bolt with shank ISO 4014 is crafted from high-strength steel grade 10.9, featuring a zinc-plated and blue passivated finish for enhanced corrosion resistance. Perfect for mechanical assemblies, construction, and automotive applications, this bolt ensures a secure fit and reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt with Shank ISO 4014 | Steel Grade 10.9 | Zinc-Plated & Blue Passivated | by WURTH
Brand: WURTH
SKU: 010506 90
Alternatively Known As: Hex bolt, Hex head bolt, ISO 4014 bolt, High tensile bolt, Zinc plated bolt
Technical Specifications
- Standard: ISO 4014 (replaces DIN 931)
- Material: Steel grade 10.9
- Surface finish: Zinc-plated, blue passivated
- Nominal dimensions extended compared to DIN 931
- Width across flats changed for M10, M12, M14, and M22 sizes
- Dimensions (H x L x W): 50mm x 50mm x 14mm
- Weight: 0.1 kg
Key Features
- High strength steel grade 10.9
- Zinc-plated with blue passivation for corrosion resistance
- Conforms to ISO 4014 standard replacing DIN 931
- Extended nominal dimensions for better fit
- Width across flats adjusted for M10, M12, M14, and M22 sizes
Professional Installation Requirements
- Installation by qualified personnel using appropriate torque tools is recommended to ensure safety and performance.
Applications
- Mechanical assemblies requiring high strength fastening
- Construction and structural applications
- Automotive and machinery manufacturing
Standards & Compliance
- AS/NZS 4762 – High tensile bolts for structural engineering
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
- Durable steel construction reduces need for frequent replacements
Warranty Information
WURTH provides warranty against manufacturing defects as per company policy.
Available Now
The WURTH Hexagon Bolt with Shank ISO 4014 Steel 10.9 Zinc-Plated Blue Passivated is available for immediate purchase, ideal for mechanical, construction, and automotive fastening applications.
