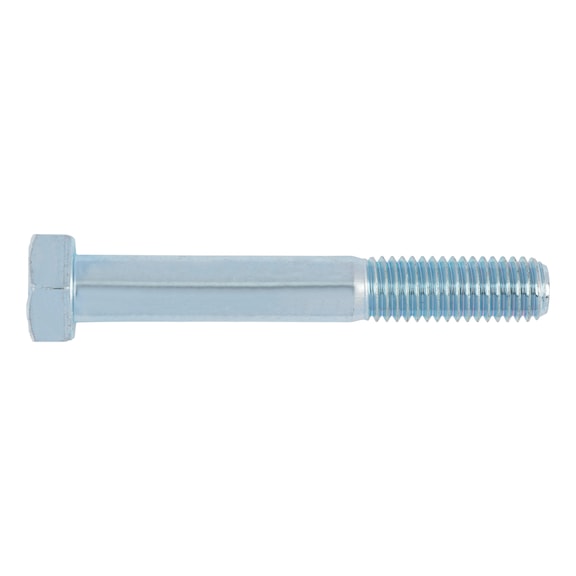

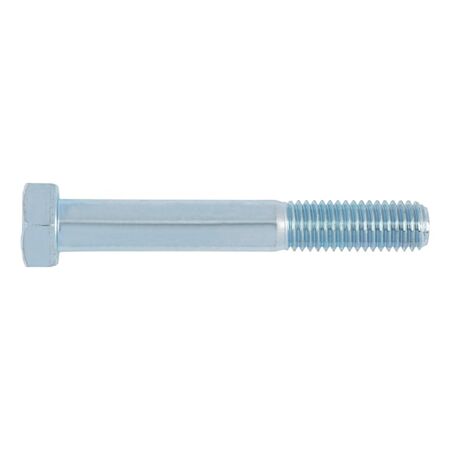

Hexagon Bolt with Shank ISO 4014 | Steel Grade 10.9 | Zinc-Plated & Blue Passivated | by WURTH
Hexagon bolt with shank ISO 4014 is crafted from high-strength steel grade 10.9, ensuring durability and reliability in mechanical assemblies. With a zinc-plated finish and blue passivation, it offers excellent corrosion resistance, making it ideal for construction, automotive, and structural applications. This bolt conforms to ISO 4014 standards, providing a secure fit for various sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Bolt with Shank ISO 4014 | Steel Grade 10.9 | Zinc-Plated & Blue Passivated | by WURTH
Brand: WURTH
SKU: 010506 70
Alternatively Known As: Hex bolt, Hex head bolt, High tensile bolt, ISO 4014 bolt, Zinc plated bolt
Technical Specifications
- Standard: ISO 4014 (replaces DIN 931)
- Material: Steel grade 10.9
- Surface finish: Zinc-plated with blue passivation
- Nominal length: 70 mm
- Width across flats: Adjusted for M10, M12, M14, M22 sizes
- Dimensions (H x L x W): 70mm x 70mm x 14mm
- Weight: 0.1 kg
Key Features
- High strength steel grade 10.9
- Zinc-plated with blue passivation for corrosion resistance
- Conforms to ISO 4014 standard replacing DIN 931
- Extended nominal dimensions for better fit
- Width across flats adjusted for M10, M12, M14, and M22 sizes
Professional Installation Requirements
- Installation by qualified personnel using appropriate torque tools is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring high strength fastening
- Construction and structural applications
- Automotive and machinery manufacturing
Standards & Compliance
- AS/NZS 1252 – High tensile bolts for structural engineering
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for mechanical, construction, and automotive fastening applications.
