Hexagon Head Bolt ASME B18.2.1 | Blue Passivated Zinc Plated | GR5 Steel | @Pack of 10 | by Wurth
Hexagon Head Bolt ASME B18.2.1 with blue passivated zinc plating and GR5 steel construction—ideal for high-strength mechanical assemblies. Designed for automotive and industrial applications, this bolt offers excellent corrosion resistance and complies with ASME standards for reliable fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Head Bolt ASME B18.2.1 | Blue Passivated Zinc Plated | GR5 Steel | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 7001051175
Alternatively Known As: Hex bolt, Hex head screw, GR5 bolt, Zinc plated bolt, Blue passivated bolt

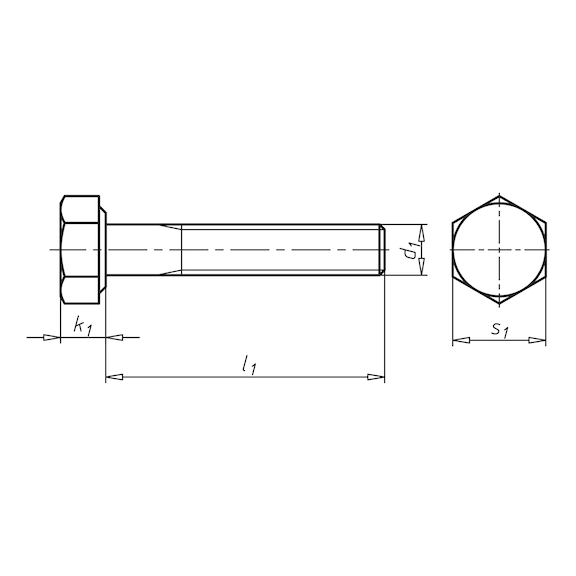

Technical Specifications
- Nominal diameter: 1/2 inch
- Length: 1-3/4 inch
- Thread type: UNF
- Head height: 0.312 inch
- External drive: WS3/4
- Material: Steel GR5
- Surface finish: Blue passivated zinc plated
- Width across flats: 3/4 inch
- Dimensions (H x L x W): 8mm x 44mm x 19mm
- Weight: 0.05 kg
Key Features
- Mechanical properties regulated by SAE J429
- Thread length based on ASME B18.2.1 standard
- Standard thread tolerance per ASME B1.1 = 2A for external thread
- Blue passivated zinc plated surface for corrosion resistance
- Material: GR5 Steel
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and fastening standards.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery fastening
- Industrial equipment assembly
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste.
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Available for immediate purchase, ideal for mechanical and industrial fastening applications.
