Hexagon Head Bolt ASME B18.2.1 | Blue Passivated Zinc Plated | GR5 Steel | @Pack of 25 | by Wurth
Hexagon head bolt ASME B18.2.1 with blue passivated zinc plating and high strength GR5 steel is perfect for mechanical assemblies. Designed for automotive and industrial applications, this bolt ensures corrosion resistance and compliance with ASME standards, making it a reliable choice for your fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Head Bolt ASME B18.2.1 | Blue Passivated Zinc Plated | GR5 Steel | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7001015075
Alternatively Known As: Hex bolt, Hex head screw, Zinc plated bolt, GR5 bolt, UNF thread bolt

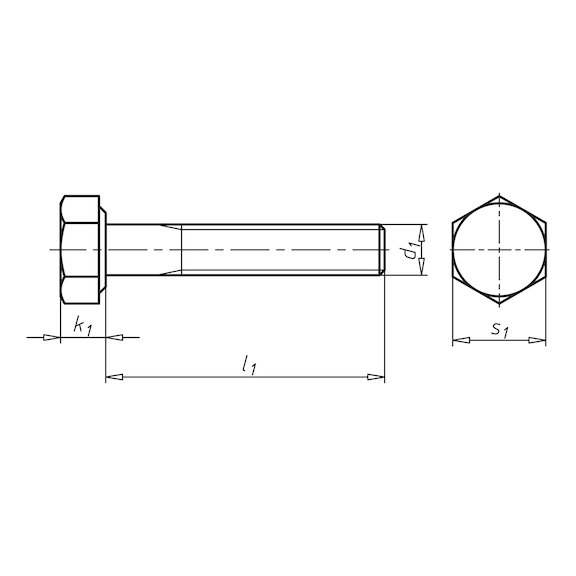

Technical Specifications
- Nominal diameter: 1/4 inch
- Length: 3/4 inch
- Thread type: UNF
- Head height: 0.156 inch
- External drive: WS7/16
- Material: Steel
- Property class: GR5
- Surface finish: Blue passivated zinc plated
- Width across flats: 7/16 inch
- Thread tolerance: 2A (external thread)
- Dimensions (H x L x W): 4mm x 19mm x 11mm
- Weight: 0.02 kg
Key Features
- Hexagon head design for easy wrenching
- Blue passivated zinc plated finish for corrosion resistance
- High strength GR5 steel material
- Standard thread tolerance 2A for external thread
- Complies with ASME B18.2.1 and SAE J429 mechanical property standards
Professional Installation Requirements
- Installation by a qualified technician or engineer recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery fastening
- Industrial equipment assembly
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste.
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Available for immediate purchase, ideal for mechanical and industrial fastening applications.
