Hexagon Head Bolt ASME B18.2.1 | Blue Passivated Zinc Plated | GR5 Steel | @Pack of 25 | by Wurth
Hexagon head bolt ASME B18.2.1 with blue passivated zinc plating and GR5 steel construction—ideal for high-strength mechanical assemblies. Designed for automotive and industrial applications, this bolt ensures superior corrosion resistance and compliance with ASME standards, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Head Bolt ASME B18.2.1 | Blue Passivated Zinc Plated | GR5 Steel | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7001015100
Alternatively Known As: Hex bolt, Hex head screw, Zinc plated bolt, GR5 bolt, Blue passivated bolt

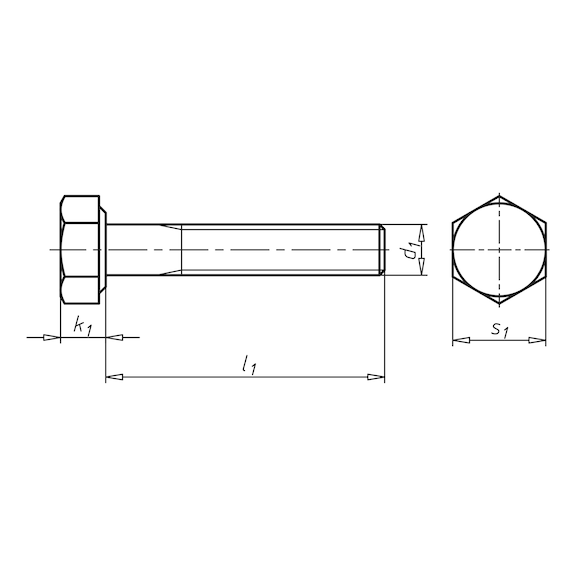

Technical Specifications
- Nominal diameter: 1/4 inch
- Length: 1 inch
- Thread type: UNF
- Head height: 0.156 inch
- External drive: WS7/16
- Material: Steel
- Property class: GR5
- Surface finish: Blue passivated zinc plated
- Width across flats: 7/16 inch
- Mechanical properties regulated by SAE J429
- Thread tolerance: 2A external thread per ASME B1.1
- Dimensions (H x L x W): 4mm x 25mm x 11mm
- Weight: 0.02 kg
Key Features
- Hexagon head design for easy wrenching
- Blue passivated zinc plated surface for corrosion resistance
- Made from GR5 steel for high mechanical strength
- Thread length and tolerance conform to ASME B18.2.1 and ASME B1.1 standards
- Mechanical properties regulated by SAE J429
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery fastening
- Industrial equipment assembly
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon Head Bolt ASME B18.2.1 Blue Passivated Zinc Plated GR5 Steel 25 PCS is available for immediate purchase, ideal for mechanical and industrial fastening applications.
