Hexagon Head Bolt ASME B18.2.1 | Blue Passivated Zinc Plated | GR5 Steel | @Pack of 25 | by Wurth
Hexagon head bolt ASME B18.2.1 with blue passivated zinc plating and high-strength GR5 steel is perfect for mechanical assemblies requiring durable fasteners. Designed for automotive and machinery manufacturing, this bolt ensures corrosion resistance and compliance with industry standards, making it a reliable choice for general industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Head Bolt ASME B18.2.1 | Blue Passivated Zinc Plated | GR5 Steel | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7001015125
Alternatively Known As: Hex bolt, Hex head screw, GR5 bolt, Zinc plated bolt, Blue passivated bolt

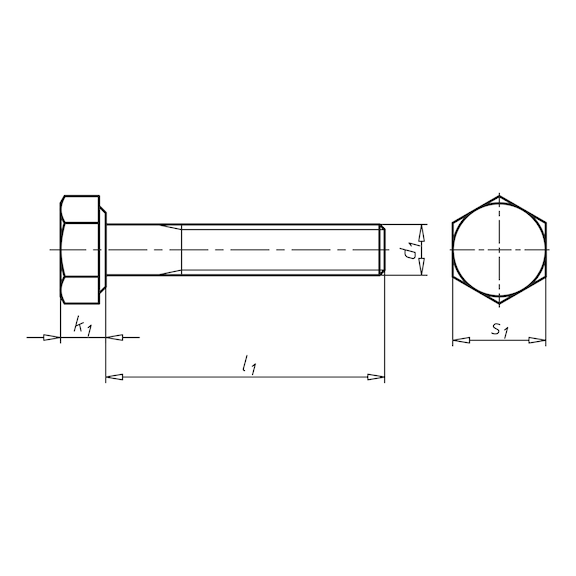

Technical Specifications
- Nominal diameter: 1/4 inch
- Length: 1-1/4 inch
- Thread type: UNF
- Head height: 0.156 inch
- External drive: WS7/16
- Material: Steel
- Property class: GR5
- Surface finish: Blue passivated zinc plated
- Width across flats: 7/16 inch
- Thread tolerance: 2A (external thread)
- Dimensions (H x L x W): 10mm x 32mm x 11mm
- Weight: 0.05 kg
Key Features
- Hexagon head design for easy wrenching
- Blue passivated zinc plating for corrosion resistance
- High strength GR5 steel material
- Standard thread tolerance 2A for external thread
- Complies with ASME B18.2.1 and SAE J429 mechanical property standards
Professional Installation Requirements
- Installation by qualified personnel using appropriate tools is recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery manufacturing
- General industrial fastening applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for mechanical fasteners used in electrical installations
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste.
Warranty Information
Warranty against manufacturing defects as per Wurth standard policy.
Available Now
Wurth Hexagon Head Bolt ASME B18.2.1 Blue Passivated Zinc Plated GR5 Steel 25 PCS is available for immediate purchase, ideal for industrial and mechanical fastening applications.
