Hexagon Head Bolt ASME B18.2.1 | Blue Passivated Zinc Plated | GR5 Steel | @Pack of 10 | by Wurth
Hexagon Head Bolt ASME B18.2.1 is designed for high-strength fastening in mechanical assemblies. With a blue passivated zinc plated finish, it offers excellent corrosion resistance, making it ideal for automotive and industrial applications. Built from durable GR5 steel, this bolt ensures reliable performance and longevity, perfect for qualified technicians and engineers.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Head Bolt ASME B18.2.1 | Blue Passivated Zinc Plated | GR5 Steel | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 7001051100
Alternatively Known As: Hex bolt, Hex head screw, GR5 bolt, Zinc plated bolt, Blue passivated bolt

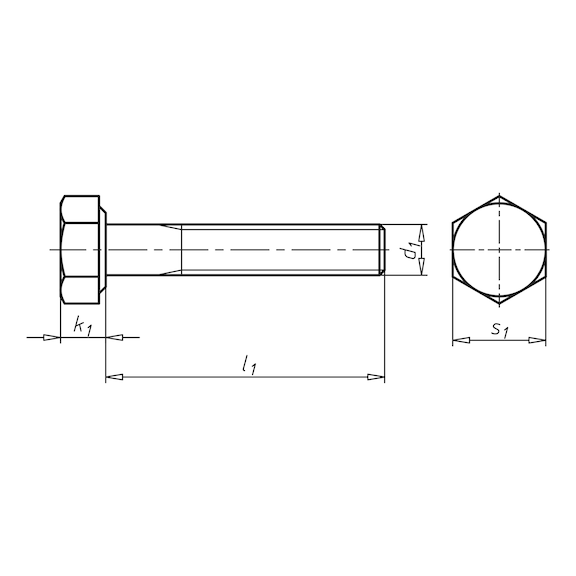

Technical Specifications
- Nominal diameter: 1/2 inch
- Length: 1 inch
- Thread type: UNF
- Head height: 0.312 inch
- External drive: WS3/4
- Material: Steel GR5
- Surface finish: Blue passivated zinc plated
- Width across flats: 3/4 inch
- Dimensions (H x L x W): 8mm x 25mm x 19mm
- Weight: 0.05 kg
Key Features
- Mechanical properties regulated by SAE J429
- Thread length based on ASME B18.2.1 standard
- Standard thread tolerance per ASME B1.1 = 2A for external thread
- Blue passivated zinc plated finish for corrosion resistance
- Material: GR5 Steel
Professional Installation Requirements
- Installation by a qualified technician or engineer recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical assemblies requiring high strength fasteners
- Automotive and machinery fastening
- Industrial equipment assembly
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste.
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Hexagon Head Bolt ASME B18.2.1 Blue Passivated Zinc Plated GR5 Steel 10 PCS is available for immediate purchase, ideal for mechanical and industrial fastening applications.
