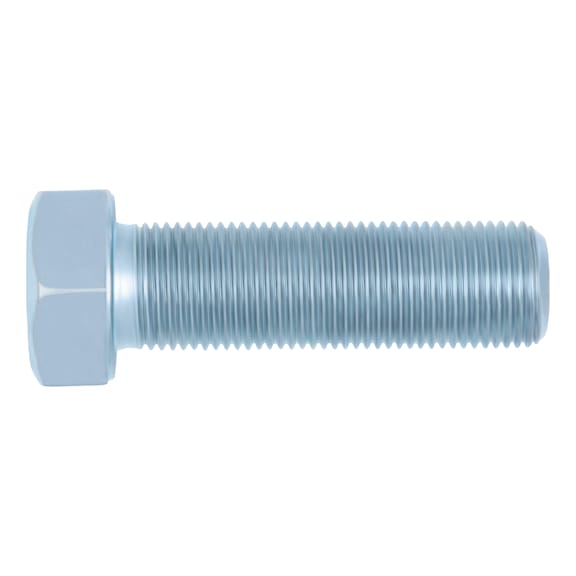

Hexagon Head Bolt M12 | Zinc Plated | Fine Pitch Thread | DIN 960 | by Wurth
The Hexagon Head Bolt M12 is designed for high-strength mechanical assemblies, featuring a fine pitch metric thread (M12 x 1.25) and a durable zinc plated surface for corrosion resistance. Ideal for automotive and industrial applications, this bolt ensures secure fastening and compliance with DIN 960 standards, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Head Bolt M12 | Zinc Plated | Fine Pitch Thread | DIN 960 | by Wurth
Brand: Wurth
SKU: 641290
Alternatively Known As: Hexagon head bolt M12 fine thread, Zinc plated metric bolt, DIN 960 bolt
Technical Specifications
- Thread type x nominal diameter x pitch (d1): M12 x 1.25
- Length (l1): 90 mm
- Standards: DIN 960
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- Head type: Hexagon head
- Drive type: Outer hexagon
- External drive (s1): WS19
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread form: Fine pitch thread
- Thread design: Partial thread
- Dimensions (H x L x W): 12mm x 90mm x 19mm
- Weight: 0.15 kg
Key Features
- Steel material with property class 8.8 for high strength
- Zinc plated surface for corrosion resistance
- Hexagon head with outer hexagon drive (WS19) for easy tightening
- Partial fine pitch metric thread (M12 x 1.25)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and secure fastening.
Applications
- Mechanical assemblies requiring fine pitch metric bolts
- Automotive and machinery fastening
- Industrial equipment assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing replacement frequency
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
The Wurth M12 x 1.25 x 90mm steel hexagon head bolt zinc plated DIN 960 is available for immediate purchase, ideal for mechanical, automotive, and industrial fastening applications.
