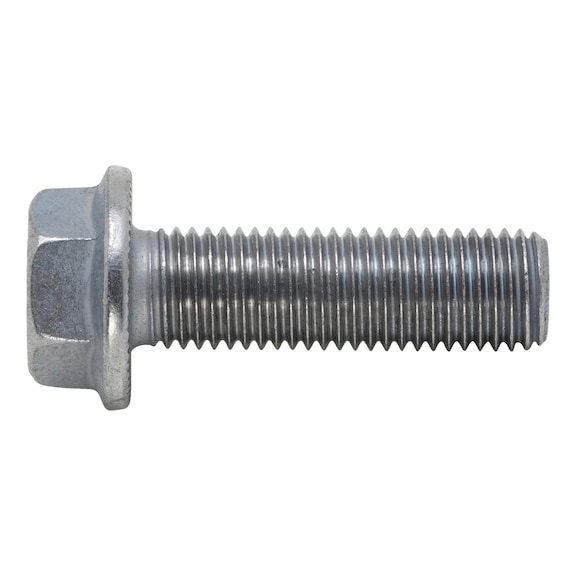

Hexagon Head Serrated Screw with Flange | M10 x 20mm | Zinc-Nickel Plated | High Tensile Strength | @Pack of 10 | by Wurth
Hexagon Head Serrated Screw with Flange is designed for utility vehicle construction, featuring a robust M10 x 20mm size and zinc-nickel plating for superior corrosion resistance. With a high tensile strength of property class 10.9 and a serrated flange head that prevents self-loosening, this screw is perfect for commercial vehicle frame assembly and general mechanical fastening applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread type x nominal diameter x pitch: M10 x 1.5
- Length: 20 mm
- Head diameter: 21 mm
- Head height: 8.5 mm
- External drive: WS15 (Outer hexagon)
- Standards: WN 263
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc nickel silver plating
- Corrosion protection period: Approx. 720 hours (DIN EN ISO 9227-NSS salt spray test)
- Thread form: Standard metric thread
- Design: Threaded to head
- Drive type: Outer hexagon
- Head type: Hexagon head with flange
- Locking device operating principle: Ribs
- Locking function: Mechanical interlocking to prevent self-loosening
- Thread design: Full thread
- Area of application: Utility vehicle construction
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8.5mm x 20mm x 21mm
- Weight: 0.05 kg
Key Features
- Zinc-nickel plated for corrosion resistance
- Strength class 10.9 for high tensile strength
- Fine thread from M12 with full thread design
- Serrated flange head provides locking against self-loosening by mechanical interlocking
- Chromium(VI)-free and RoHS-compliant
- Approx. 720 hours corrosion protection in salt spray test (DIN EN ISO 9227-NSS)
- Locking ribs cause surface-hardening plastic deformation to reduce settling and loss of pretensioning force
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper torque and locking function.
Applications
- Utility vehicle construction
- Commercial vehicle frame assembly
- General mechanical fastening requiring high strength and corrosion resistance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium(VI)-free plating reduces environmental and health hazards
- RoHS-compliant material ensures reduced hazardous substances
Warranty Information
Wurth standard warranty against manufacturing defects applies.
Available Now
Wurth Hexagon Head Serrated Screw with Flange M10 x 20mm is available for immediate purchase, ideal for utility and commercial vehicle construction applications.
