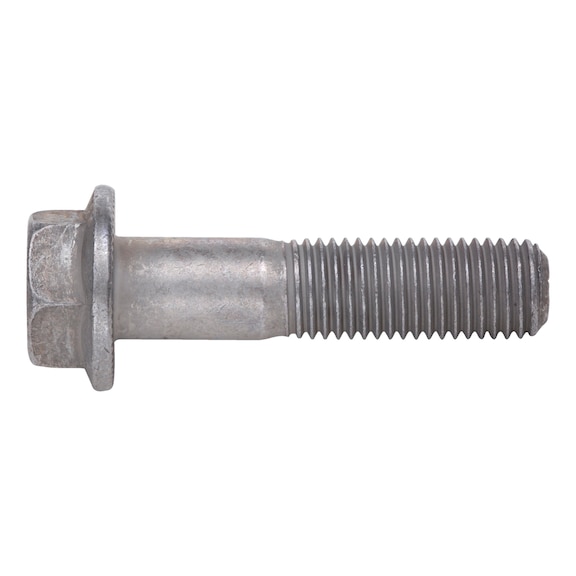

Hexagon Head Serrated Screw with Flange | M12 x 1.5 | Zinc-Nickel Plated | High Strength 10.9 | @Pack of 10 | by Wurth
Hexagon Head Serrated Screw with Flange is designed for high-strength applications, featuring a robust M12 x 1.5 fine pitch thread and zinc-nickel plating for superior corrosion resistance. Ideal for utility vehicle construction and commercial vehicle frame assembly, this screw ensures mechanical interlocking to prevent self-loosening, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread type x nominal diameter x pitch: M12 x 1.5
- Length: 45 mm
- Head diameter: 24 mm
- Head height: 10 mm
- External drive: WS17 (Outer hexagon)
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc nickel silver plating
- Corrosion protection period: 720 hours (DIN EN ISO 9227 NSS salt spray test)
- Thread form: Fine pitch thread
- Design: With shaft
- Drive type: Outer hexagon
- Head type: Hexagon head with flange
- Locking device operating principle: Ribs
- Locking function: Mechanical interlocking to prevent self-loosening
- Thread design: Partial thread with 30 mm thread length
- Area of application: Utility vehicle construction
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 45mm x 24mm
- Weight: 0.1 kg
Key Features
- Zinc-nickel plated for corrosion resistance
- Strength class 10.9 for high tensile strength
- Fine pitch thread from M12 with partial thread length of 30 mm
- Serrated flange head with locking ribs to prevent self-loosening
- Chromium(VI)-free and RoHS-compliant
- Corrosion protection period approximately 720 hours in salt spray test
- Mechanical interlocking locking function to maintain pretensioning force
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate torque settings to ensure proper locking and performance.
Applications
- Utility vehicle construction
- Commercial vehicle frame assembly
- General mechanical fastening requiring high strength and corrosion resistance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium(VI)-free plating reduces environmental and health hazards
- RoHS-compliant ensuring reduced hazardous substances
- Long corrosion resistance extends product life, reducing waste
Warranty Information
Wurth provides warranty against manufacturing defects as per standard terms and conditions.
Available Now
Wurth Hexagon Head Serrated Screw with Flange M12 x 45mm is available for immediate purchase, ideal for utility vehicle construction and commercial vehicle frame applications.
