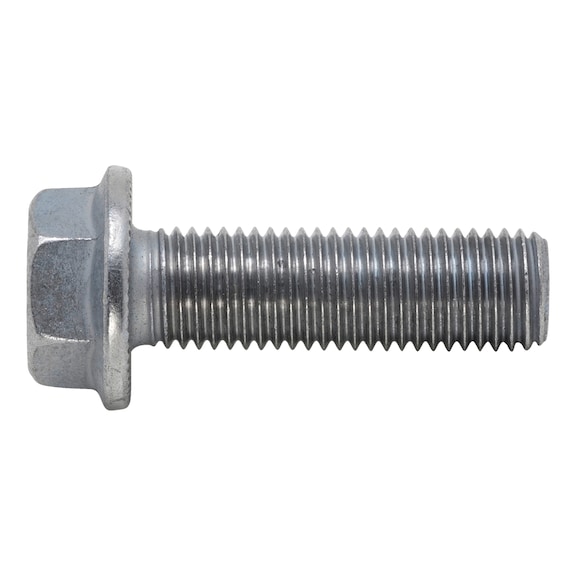

Hexagon Head Serrated Screw with Flange | M12 x 1.5 | Zinc-Nickel Plated | High Tensile Strength | @Pack of 10 | by Wurth
Hexagon Head Serrated Screw with Flange M12 x 1.5 is designed for high-strength applications, featuring zinc-nickel plating for superior corrosion resistance. Ideal for utility and commercial vehicle construction, this screw ensures mechanical interlocking to prevent self-loosening, making it perfect for demanding fastening tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Thread type x nominal diameter x pitch: M12 x 1.5
- Length: 35 mm
- Head diameter: 24 mm
- Head height: 10 mm
- External drive: WS17 (Outer hexagon)
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc nickel silver plating
- Corrosion protection period: 720 hours (salt spray test DIN EN ISO 9227-NSS)
- Thread form: Fine pitch thread
- Design: Threaded to head
- Locking device operating principle: Ribs
- Locking function: Mechanical interlocking to prevent self-loosening
- Thread design: Full thread
- RoHS-compliant: Yes
- Dimensions (H x L x W): 10mm x 35mm x 24mm
- Weight: 0.05 kg
Key Features
- Zinc-nickel plated for corrosion resistance
- Strength class 10.9 for high tensile strength
- Fine pitch thread from M12
- Serrated flange bolt with locking ribs to prevent self-loosening
- Chromium(VI)-free and RoHS-compliant
- Approx. 720 hours corrosion resistance in salt spray test (DIN EN ISO 9227-NSS)
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct torque and locking function.
Applications
- Utility vehicle construction
- Commercial vehicle frame assembly
- Mechanical fastening requiring high strength and corrosion resistance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium(VI)-free plating reduces environmental and health hazards
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Wurth standard warranty against manufacturing defects applies.
Available Now
Wurth Hexagon Head Serrated Screw with Flange M12 x 35mm is available for immediate purchase, ideal for utility vehicle and commercial vehicle frame construction.
