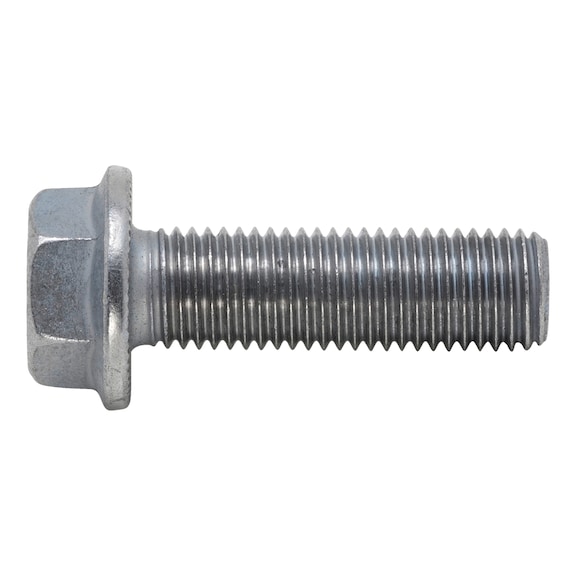

Hexagon Head Serrated Screw with Flange | Zinc-Nickel Plated | Strength Class 10.9 | @Pack of 10 | by Wurth
Hexagon Head Serrated Screw with Flange is designed for high-strength applications, featuring a zinc-nickel plating for superior corrosion resistance. Ideal for utility vehicle construction and commercial vehicle frame assembly, this screw ensures secure fastening with its serrated flange design that prevents self-loosening. Built for professionals, it meets stringent standards for reliability and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Head Serrated Screw with Flange | Zinc-Nickel Plated | Strength Class 10.9 | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 26321016
Alternatively Known As: Hex flange bolt, serrated flange screw, M10 serrated bolt, zinc-nickel plated hex bolt, high strength flange screw
Technical Specifications
- Thread type x nominal diameter x pitch: M10 x 1.5
- Length: 16 mm
- Head diameter: 21 mm
- Head height: 8.5 mm
- External drive: WS15 (Outer hexagon)
- Standards: WN 263
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc nickel silver plating
- Corrosion protection period: 720 hours (salt spray test)
- Thread form: Standard metric thread
- Design: Threaded to head
- Drive type: Outer hexagon
- Head type: Hexagon head with flange
- Locking device operating principle: Ribs
- Locking function: Locking against self-loosening by mechanical interlocking
- Thread design: Full thread
- Area of application: Utility vehicle construction
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8.5mm x 16mm x 21mm
- Weight: 0.05 kg
Key Features
- Zinc-nickel plated for enhanced corrosion resistance
- Strength class 10.9 for high tensile strength
- Serrated flange design provides locking against self-loosening by mechanical interlocking
- Fine thread from M12 with full thread design
- Chromium(VI)-free and RoHS-compliant
- Corrosion protection period approximately 720 hours in salt spray test
- Outer hexagon drive (WS15) for secure tightening
- Threaded to head for maximum engagement
Professional Installation Requirements
- Installation should be performed by qualified personnel using appropriate torque settings to ensure proper locking and performance.
Applications
- Utility vehicle construction
- Commercial vehicle frame assembly
- General mechanical fastening requiring high strength and corrosion resistance
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chromium(VI)-free plating reduces environmental and health hazards
- RoHS-compliant ensuring reduced hazardous substances
- Long corrosion resistance life reduces frequency of replacements and waste
Warranty Information
Wurth provides warranty against manufacturing defects as per standard terms and conditions.
Available Now
Wurth Hexagon Head Serrated Screw with Flange M10 x 16mm is available for immediate purchase, ideal for utility vehicle construction and commercial vehicle frame applications.
