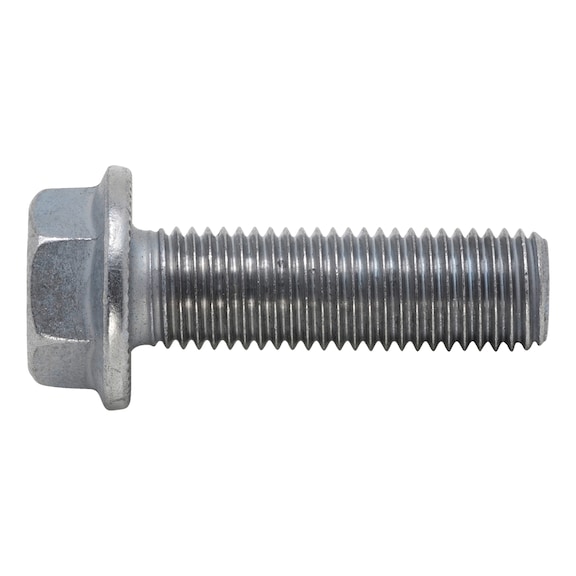

Hexagon Head Serrated Screw with Flange | Zinc-Nickel Plated | Strength Class 10.9 | Self-Locking Design | @Pack of 10 | by Wurth
Hexagon Head Serrated Screw with Flange is designed for high-strength applications, featuring a zinc-nickel plating for superior corrosion resistance and a strength class of 10.9. Ideal for utility vehicle construction and commercial vehicle frame assembly, this self-locking screw ensures secure fastening with its serrated flange design, preventing loosening over time.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

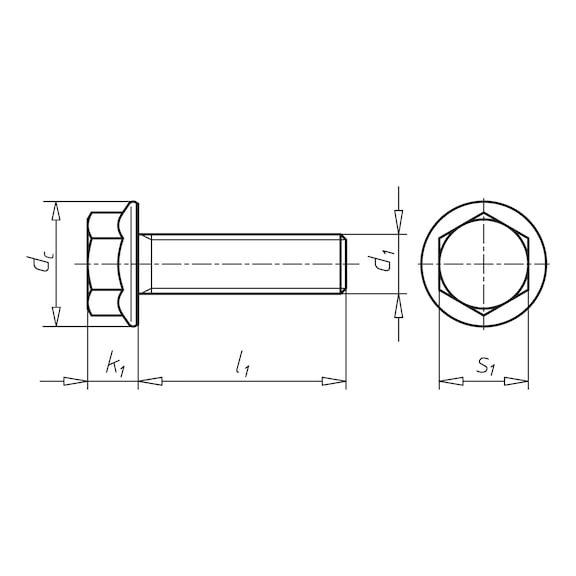

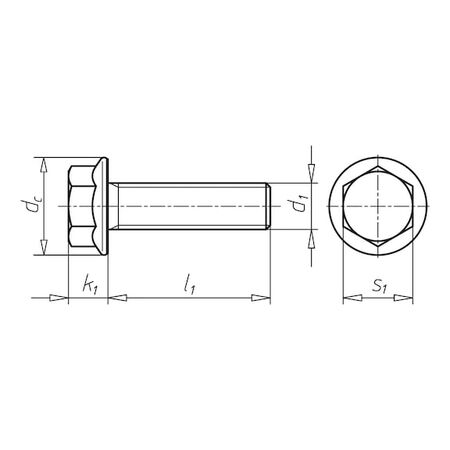

Technical Specifications
- Thread type x nominal diameter x pitch: M10 x 1.5
- Length: 35 mm
- Head diameter: 21 mm
- Head height: 8.5 mm
- External drive: WS15 (Outer hexagon)
- Standards: WN 263
- Material: Steel
- Property class: 10.9
- Surface finish: Zinc nickel silver plating
- Corrosion protection period: 720 hours (salt spray test)
- Thread form: Standard metric thread
- Design: Threaded to head
- Drive type: Outer hexagon
- Head type: Hexagon head with flange
- Locking device operating principle: Ribs
- Locking function: Locking against self-loosening by mechanical interlocking
- Thread design: Full thread
- Area of application: Utility vehicle construction
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8.5mm x 35mm x 21mm
- Weight: 0.05 kg
Key Features
- Zinc-nickel plated for enhanced corrosion resistance
- Strength class 10.9 for high tensile strength

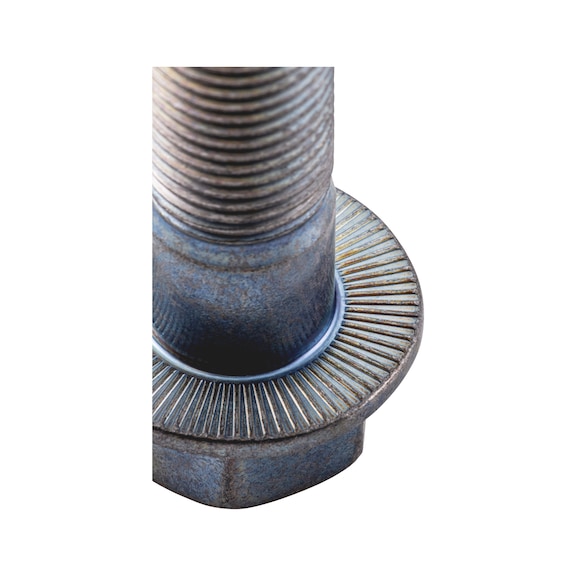

- Serrated flange design provides locking against self-loosening by mechanical interlocking
- Fine thread from M12 with full thread design
- Chromium(VI)-free and RoHS-compliant
- Corrosion protection period approximately 720 hours in salt spray test
- Locking ribs cause surface-hardening plastic deformation to reduce settling and loss of pretensioning force
Professional Installation Requirements
- Installation should be performed by qualified personnel to ensure correct torque and locking function for safety and performance.
Applications
- Utility vehicle construction
- Commercial vehicle frame assembly
- General mechanical fastening requiring high strength and corrosion resistance
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Chromium(VI)-free plating reduces environmental and health hazards
- RoHS-compliant ensuring reduced hazardous substances
- Long corrosion resistance life reduces frequency of replacements and waste
Warranty Information
Wurth provides warranty against manufacturing defects as per standard terms and conditions.
Available Now
Wurth Hexagon Head Serrated Screw with Flange M10 x 35mm is available for immediate purchase, ideal for utility vehicle construction and commercial vehicle frame applications.
