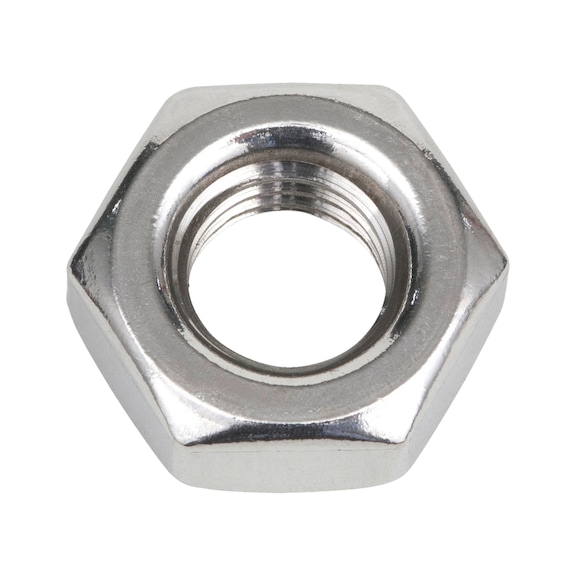

Hexagon Nut | 1/2 Inch UNC | Stainless Steel AISI 316 | Plain Finish | @Pack of 25 | by Wurth
Hexagon Nut with 1/2 inch UNC threads and made from durable stainless steel AISI 316—ideal for industrial machinery assembly and construction applications. This pack of 25 nuts offers excellent corrosion resistance, making them perfect for marine and chemical environments, ensuring longevity and reliability in fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut | 1/2 Inch UNC | Stainless Steel AISI 316 | Plain Finish | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7741350
Alternatively Known As: Hex Nut, Stainless Steel Hex Nut, UNC Hex Nut, 316 Stainless Steel Nut

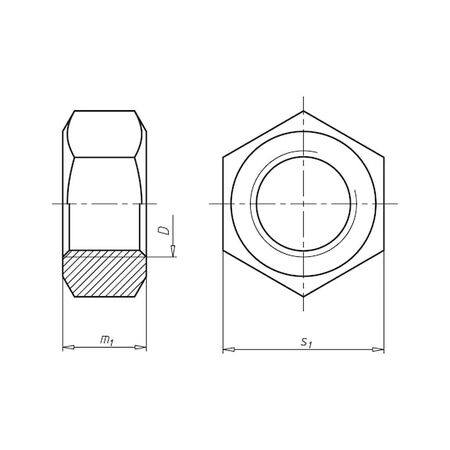

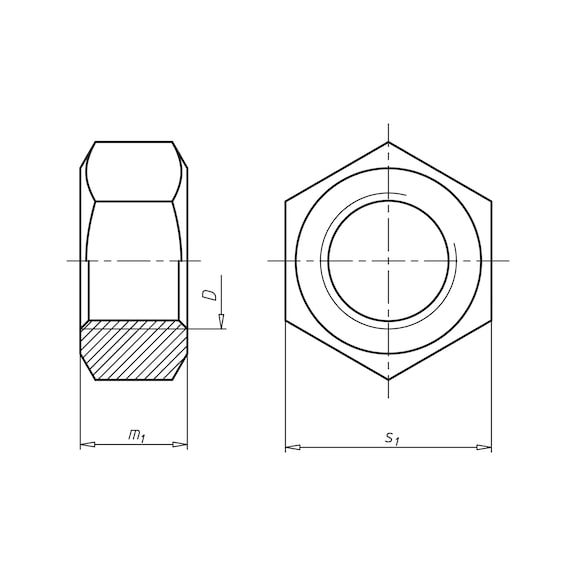

Technical Specifications
- Nominal diameter: 1/2 inch (12.7 mm)
- Height: 0.448 inch (11.4 mm)
- Width across flats: 3/4 inch (19 mm)
- Material: Stainless steel AISI 316
- Surface finish: Plain
- Thread type: UNC
- Threads per inch: 13
- Dimensions (H x L x W): 11.4mm x 19mm x 19mm
- Weight: 0.05 kg
Key Features
- Made from stainless steel AISI 316, comparable to A4 stainless steel
- Standard UNC thread with 13 threads per inch
- Complies with ASME B18.2.2 and ASTM F594 mechanical properties
- Thread tolerance according to ASME B1.1 = 2B for internal thread
- Plain surface finish
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and thread engagement.
Applications
- Industrial machinery assembly
- Construction and structural applications
- Marine and chemical environments requiring corrosion resistance
- General fastening applications requiring UNC thread
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing replacement frequency and waste
- Stainless steel material is recyclable
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon Nut Inch 25 PCS is available for immediate purchase, ideal for industrial, construction, and marine fastening applications.
