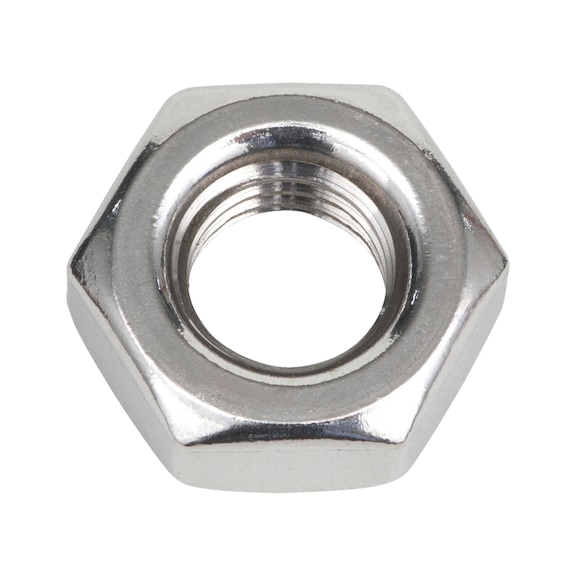

Hexagon Nut 1/4 Inch | Stainless Steel AISI 316 | UNC Thread | Plain Finish | @Pack of 100 | by Wurth
Hexagon Nut 1/4 Inch made from durable stainless steel AISI 316, featuring a standard UNC thread with 20 threads per inch. Ideal for mechanical fastening in machinery and equipment, this nut is perfect for industrial assembly and marine environments due to its corrosion-resistant properties. With a plain surface finish, it ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut 1/4 Inch | Stainless Steel AISI 316 | UNC Thread | Plain Finish | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 7741314
Alternatively Known As: Hex Nut, Stainless Steel Hex Nut, UNC Hex Nut, 1/4 Inch Hex Nut
Technical Specifications
- Nominal diameter: 1/4 inch (6.35 mm)
- Height: 0.2260 inch (5.74 mm)
- Width across flats: 7/16 inch (11.11 mm)
- Material: Stainless steel AISI 316
- Surface finish: Plain
- Thread type: UNC
- Threads per inch: 20
- Dimensions (H x L x W): 5.74mm x 11.11mm x 11.11mm
- Weight: 0.02 kg
Key Features
- Made from stainless steel AISI 316, comparable to A4 stainless steel
- Standard UNC thread with 20 threads per inch
- Complies with ASME B18.2.2 and ASTM F594 mechanical property standards
- Thread tolerance according to ASME B1.1 = 2B for internal thread
- Plain surface finish
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and thread engagement.
Applications
- Mechanical fastening in machinery and equipment
- Industrial assembly requiring corrosion-resistant fasteners
- Marine and chemical environments due to stainless steel 316 properties
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- Stainless steel is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Wurth Hexagon Nut Inch 100 PCS is available for immediate purchase, ideal for industrial and marine fastening applications.
