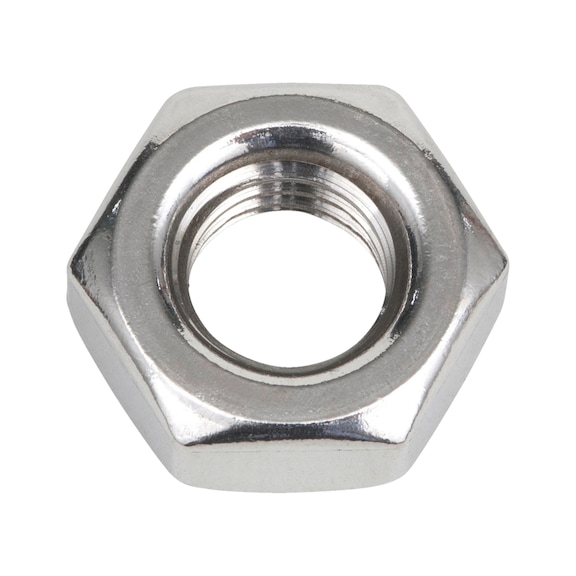

Hexagon Nut 18-8 Stainless Steel | ASME B18.2.2 Compliant | UNC Thread | @Pack of 25 | by Wurth
Hexagon Nut 18-8 Stainless Steel is designed for reliable mechanical fastening in various applications. Compliant with ASME B18.2.2 standards, this nut features a UNC thread type with 13 threads per inch, ensuring a secure fit. Ideal for industrial, automotive, and construction use, it offers excellent corrosion resistance, making it a durable choice for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut 18-8 Stainless Steel | ASME B18.2.2 Compliant | UNC Thread | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 7740350
Alternatively Known As: Hex Nut, Stainless Steel Hex Nut, UNC Hex Nut, 1/2 inch Hex Nut, 18-8 Stainless Steel Nut
Technical Specifications
- Nominal diameter: 1/2 inch (12.7 mm)
- Height: 0.448 inch (11.38 mm)
- Width across flats: 3/4 inch (19.05 mm)
- Material: Stainless steel AISI 304, 18-8
- Surface finish: Plain
- Thread type: UNC
- Threads per inch: 13
- Dimensions (H x L x W): 11.38mm x 19.05mm x 19.05mm
- Weight: 0.05 kg
Key Features
- Made from 18-8 stainless steel (AISI 304) providing corrosion resistance
- Complies with ASME B18.2.2 hexagon nut standards
- UNC thread type with 13 threads per inch
- Thread tolerance according to ASME B1.1 = 2B for internal thread
- Mechanical properties regulated by ASTM F594
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper torque and fastening integrity.
Applications
- Mechanical fastening in machinery and equipment
- Industrial assembly requiring corrosion-resistant fasteners
- General purpose fastening in automotive and construction
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Corrosion resistance extends product life reducing waste
- Stainless steel is recyclable and environmentally friendly
Warranty Information
Standard manufacturer warranty against defects in material and workmanship.
Available Now
Available for immediate purchase, ideal for industrial, automotive, and construction fastening applications.
