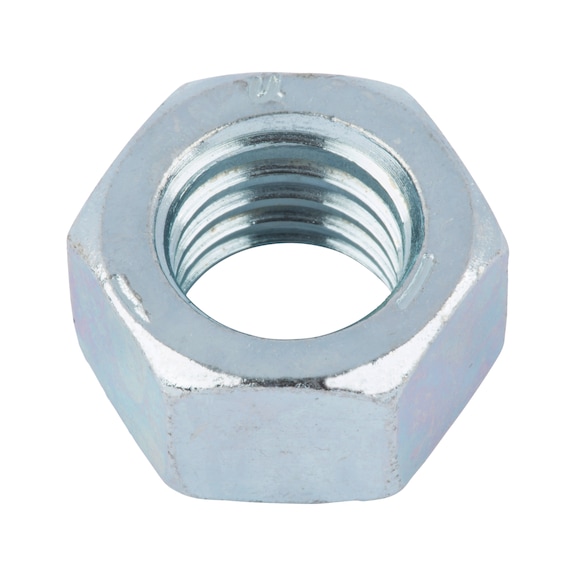

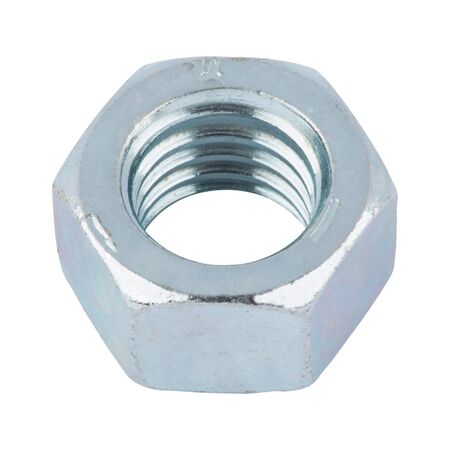

Hexagon Nut ASME B18.2.2 | Blue Passivated Zinc Plated | GR8 Steel | UNF Fine Thread | @PCS by Wurth
Hexagon Nut ASME B18.2.2 with blue passivated zinc plating and GR8 steel construction—ideal for mechanical assemblies and industrial applications. Designed for high strength and corrosion resistance, this fine thread UNF nut ensures reliable fastening in various inch-based systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hexagon Nut ASME B18.2.2 | Blue Passivated Zinc Plated | GR8 Steel | UNF Fine Thread | @PCS by Wurth
Brand: Wurth
SKU: 7739088
Alternatively Known As: Hex Nut, Fine Thread Nut, UNF Hex Nut, Blue Zinc Plated Nut, GR8 Steel Nut
Technical Specifications
- Nominal diameter: 7/8 inch (22.225 mm)
- Height: 0.776 inch (19.7 mm)
- Width across flats: 1 5/16 inch (33.34 mm)
- Material: Steel
- Property class: GR8
- Surface finish: Blue passivated zinc plated
- Thread type: UNF (Unified Fine Thread)
- Threads per inch: 14
- Mechanical properties regulated by SAE J995
- Thread tolerance according to ASME B1.1 = 2B (for internal thread)
- Dimensions (H x L x W): 19.7mm x 33.34mm x 33.34mm
- Weight: 0.05 kg
Key Features
- Blue passivated zinc plated finish for corrosion resistance
- Made from GR8 steel for high mechanical strength
- Fine thread UNF type with 14 threads per inch
- Complies with ASME B18.2.2 hexagon nut standards
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper torque and thread engagement.
Applications
- Mechanical assemblies requiring fine thread hexagon nuts
- Industrial machinery and automotive fastening
- General purpose fastening in inch-based systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information
Standard manufacturer warranty applies; contact Wurth for details.
Available Now
The Wurth Hexagon Nut inch size with blue passivated zinc plating and GR8 steel is available for immediate purchase, ideal for industrial and mechanical fastening applications.
