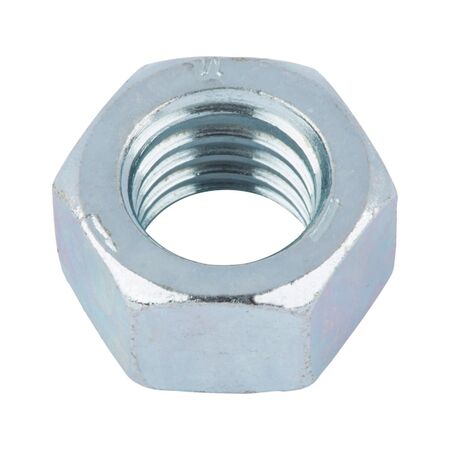

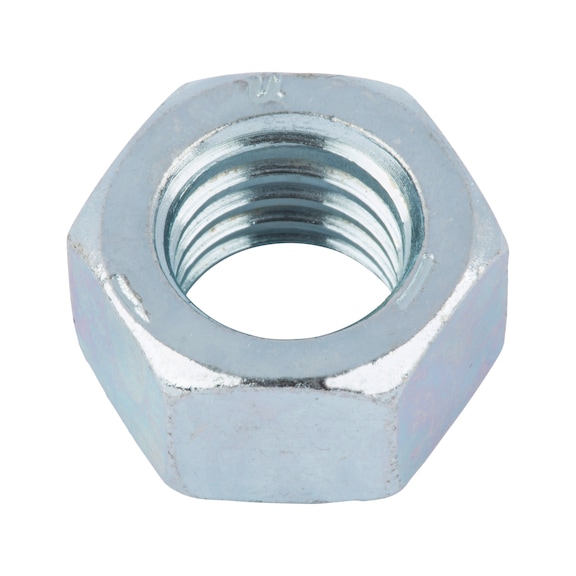

Hexagon Nut ASME B18.2.2 Blue Passivated Zinc Plated GR8 Steel Variant-10 Wurth

BRAND: Wurth
SKU: 7739032
$27.40 List price: $34.50
50 PCS ($0.55 per PCS)
+ −
30 Days Return Electricians Unlock Trade Access
Hexagon Nut ASME B18.2.2 with fine UNF thread and blue passivated zinc plating—ideal for mechanical fastening in automotive and industrial applications.
Technical Specifications
  • Nominal diameter: 5/16 inch (approx. 7.94 mm)
  • Height: 0.273 inch (6.93 mm)
  • Width across flats: 1/2 inch (12.7 mm)
  • Material: Steel
  • Property class: GR8
  • Surface finish: Blue passivated zinc plated
  • Thread type: UNF (Unified Fine Thread)
  • Thread starts per inch: 24
  • Mechanical properties regulated by SAE J995
  • Thread tolerance per ASME B1.1 = 2B (internal thread)
  • Dimensions (H x L x W): 6.93mm x 12.7mm x 12.7mm
  • Weight: 0.02 kg
Key Features
  • Hexagon nut with fine UNF thread
  • Blue passivated zinc plated for corrosion resistance
  • Made from GR8 steel for high mechanical strength
  • Complies with ASME B18.2.2 dimensional standards
  • Thread tolerance according to ASME B1.1 = 2B for internal thread
Professional Installation Requirements
  • Installation by qualified personnel recommended to ensure proper torque and thread engagement.
Applications
  • Mechanical fastening in automotive, machinery, and industrial equipment
  • Use in fine thread applications requiring high strength and corrosion resistance
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Zinc plating provides corrosion resistance extending product life and reducing waste
Warranty Information

Standard manufacturer warranty against defects applies.

Available Now

Available for immediate purchase, ideal for mechanical fastening in automotive and industrial applications.
